HLD Quartz Series_Rental display screen_Product

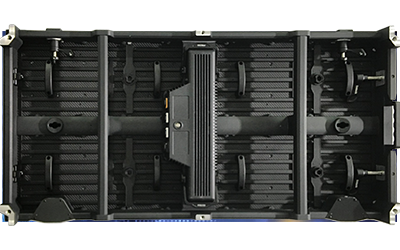

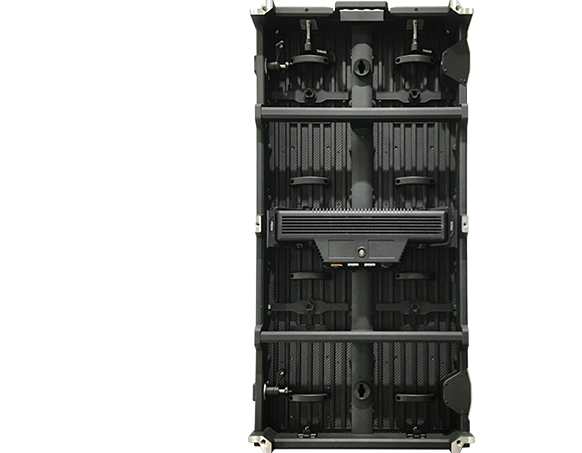

Optional curved lock, capable of splicing large screens with-10°~15°camber, 90°corner, etc;

The modular button lock design allows for fast assembly, disassembly and maintenance within 5 seconds;

Optional magnetic module can achieve complete assembly, disassembly and maintenance of the module and power supply front the front.

: Module P3.91

High brightness; brightness up to 6500CD/㎡; front maintenance; titanium alloy, ultra-light and ultra-thin; quick lock, quick installation.

: High protection level, safe and reliable

IP65/IP54 protection level, fully waterproof design, suitable for any bad weather. Install leakage protector, multiple protection, protection is everywhere.

: High refresh rate

The high refresh rate of ≥3840Hz ensures that the picture display is stable without smudges, flickering, and frame loss. The signal delay ensures the consistency of picture playback.

Item	Specification Parameter
Pixel Pitch、Resolution rate、size	3.91mm、64128、250500*15mm
Pixel color、 Pixel LED	1R1G1B、 SMD1415
Working voltage、Module Power	DC4.5-5V、30W
Driving IC、Driving way	CFD455/ICND2153、118
HUB	/
Material、Cabinet Weight(kg/Cabinet)	Cast aluminum、15kg/Cabinet
Resolution rate、size、Module quantity	128256Dots、500100094mm、22
Density	65536 Dots/㎡
Whitebalance 、Color temperature	5000CD/㎡、6000K-8000K
view angle、Non-Flatness、Module interval	H/V：120°/120°、＜0.2mm、＜0.2mm
Maximal power/㎡、Average power/㎡	600W/㎡、200W/㎡
Frame frequency、Refresh frequency、Gray grade	60Hz、3840Hz 、≥14bit
Control system、System supports	Windows XP，WIN 7
Working temperature、Protection grade	-20~50℃、Front/Back：IP65
*Reference information, different configurations, different parameters
