Adopt the low power supply scheme of common Yin and common Yang separately, and highlight 2727 lamps. The same brightness saves 50%;
Energy compared with the traditional screen;

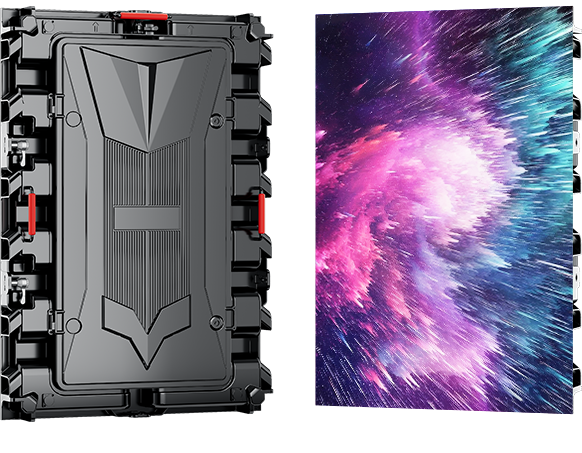

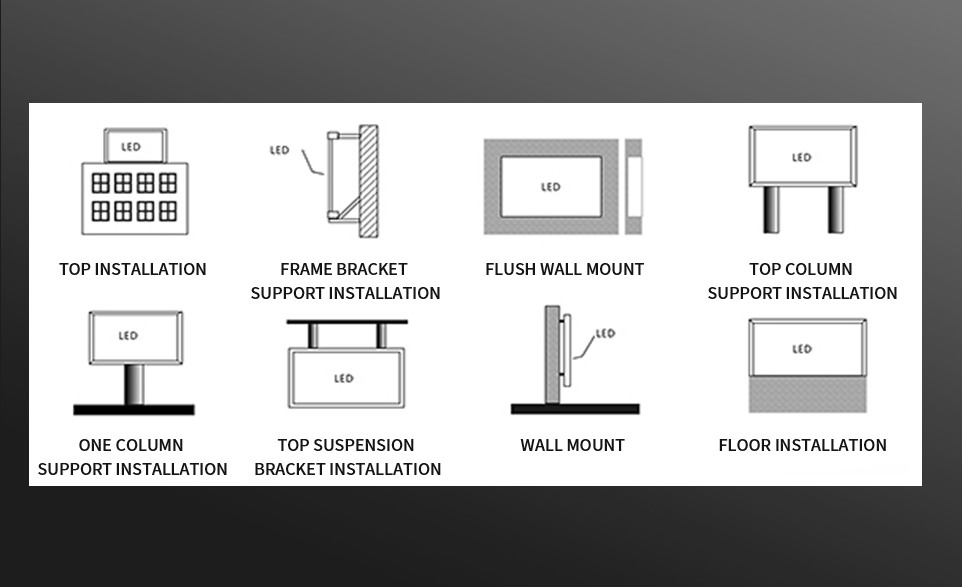

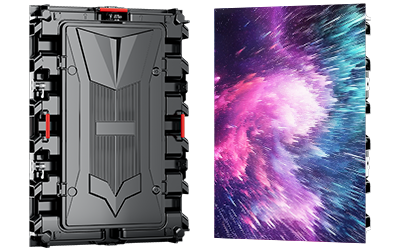

Fully enclosed module, support full front and rear maintenance, no maintenance channel, can be attached to the wall installation;
Module without screws, power box, module can be quickly before and after disassembly and assembly before and after maintenance;

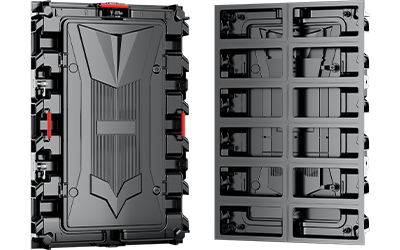

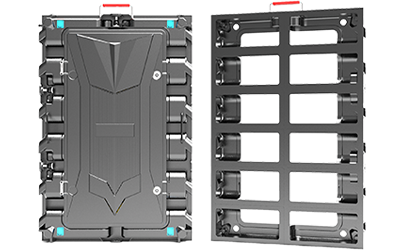

All cast aluminum box, ultra-light and ultra-thin, very high strength;
High waterproof grade, IP65;
Power supply using dual voltage power supply, with automatic deployment of double output function, to ensure the stability of power supply;
The latest circuit design, EMC certification standards.
| Products module | X2.5 | X3 |
| Pixel pitch(mm) | 2.5mm | 3mm |
| Pixel density(dots/m²) | 160000 | 105625 |
| LED encapsulation | 1415 | 1415 |
| Driving method | 1/16 | 1/13 |
| Resolution of module(dot) | 128*64 | 104*52 |
| Module size(mm) | 320*160 | 320*160 |
| Module consumption(W) | ≤33 | ≤40 |
| Working voltage(V) | 3.8/3.2 | 3.8/3.2 |
| Max.consumption(W/m²) | ≤780 | ≤640 |
| Ave.consumption(W/m²) | ≤260 | ≤210 |
| Brightness(CD/m²) | 4500 | 4500 |
| Color temperature(K) | 6000-8000K | 6000-8000K |
| View angle(H/V) | 140°/140° | 140°/140° |
| Refresh rate(Hz) | 3840 | 3840 |
| Working temperature | -20~50℃ | -20~50℃ |
| Protect degree(F/B) | IP65/IP54 | IP65/IP54 |
| Grey/scale | 13bit | 13bit |
