Feature Parameter

T Series

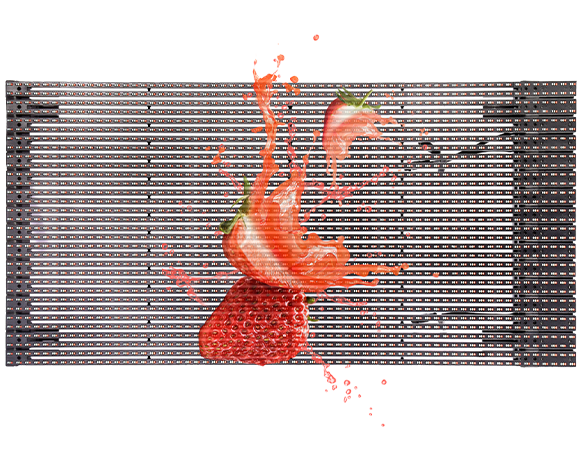

Ultra thin and light-weighted; easy to install and maintain, no frame work needed; The glass video wall transparency ≥63%; Resistant to various working conditions such as low and high temperature, humidity, etc; Over 50% screen energy-saving with the adoption of high-brightness LEDs.

T Series

Lightweight and transparent: The weight is only 23kg/m², easy to install and maintain, no need of supporting structure;

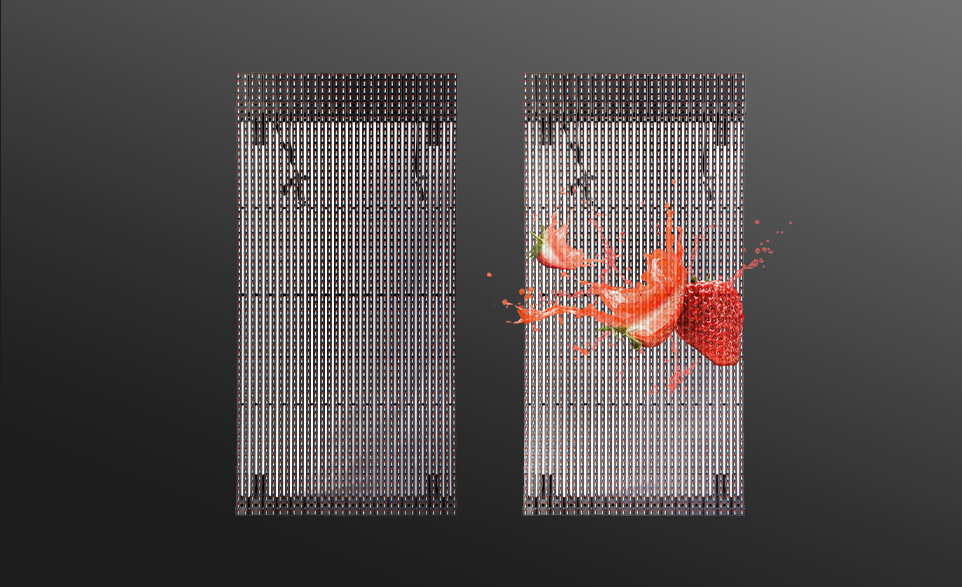

High transparency: The glass screen transparency reach over 30-45% made it a lifelikevideo wall without affecting the outdoor vision;

High protection grade: resistant to various working conditions such as low temperature, high temperature, humidity, etc;

Low power consumption: more than 60% energy saving for large screens with the adoption of high-brightness LEDs;

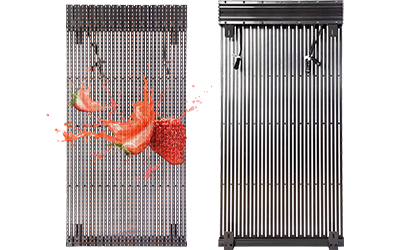

Adaptability of conditions: it can be installed and maintained from front/back;

No steel structure: directly use the original glass wall steel structure.

Large display area - low price

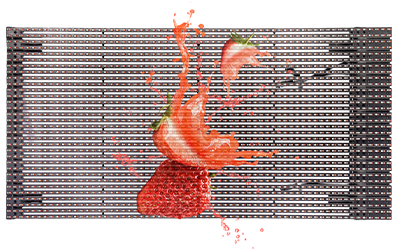

There is only one iron/aluminum frame, composed of multiple pixel light bars; the transparent display screen body can not block the objects behind the display screen when it is not displayed, and the transparency rate is as high as 70%; it can be composed of large-size LEDs that are more powerful Display screen; can display colorful and magical pictures, images and videos; light weight standard frame - easy to transport and fast assembly; pixel brightness is 3000mcd; 16 million colors; a variety of external interfaces: DVI, VGA, AV, DMX512, etc., can easily display any LOGO, logo, image and video.

Hollow display is suitable for large parties and exhibitions

The hollow display screen is suitable for large-scale evening parties and exhibitions: such as: concerts, concerts, awards ceremonies, product displays, exhibitions, etc., can be used as a stage background, or as a three-dimensional split display screen on the stage; move and rotate on the stage It only needs to be fixed on a mobile base, without additional fixing.

Place of use

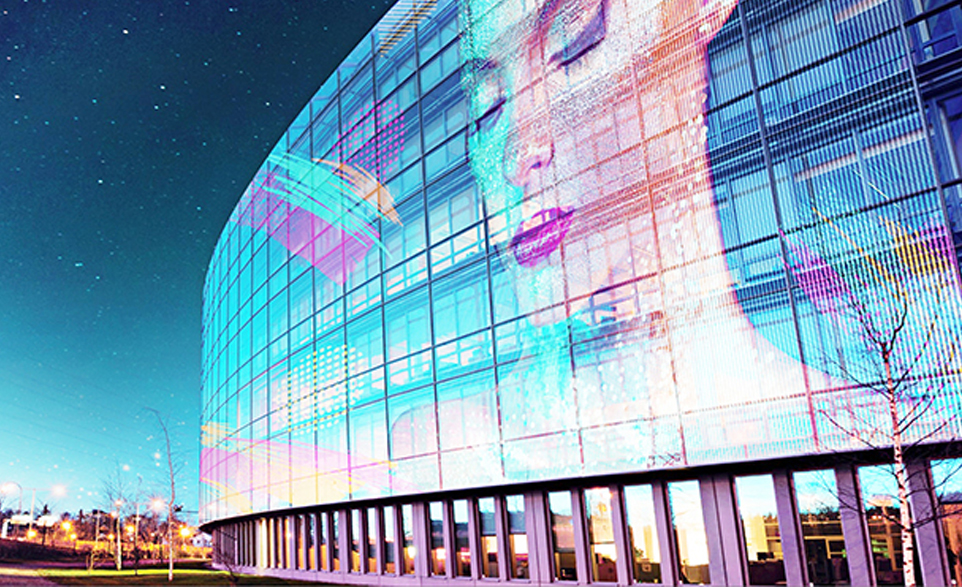

Large-size display screen: especially used on the exterior wall of the building, it does not affect the appearance of the building during the day, and it is a huge LED display screen at night, which can beautify the urban environment and improve the image of the city and the building; LOGO, corporate logo : It can be placed indoors or outdoors as LOGO and corporate logo. Entertainment venues: such as: dance halls, bars, restaurants, karaoke halls, hotels, etc.

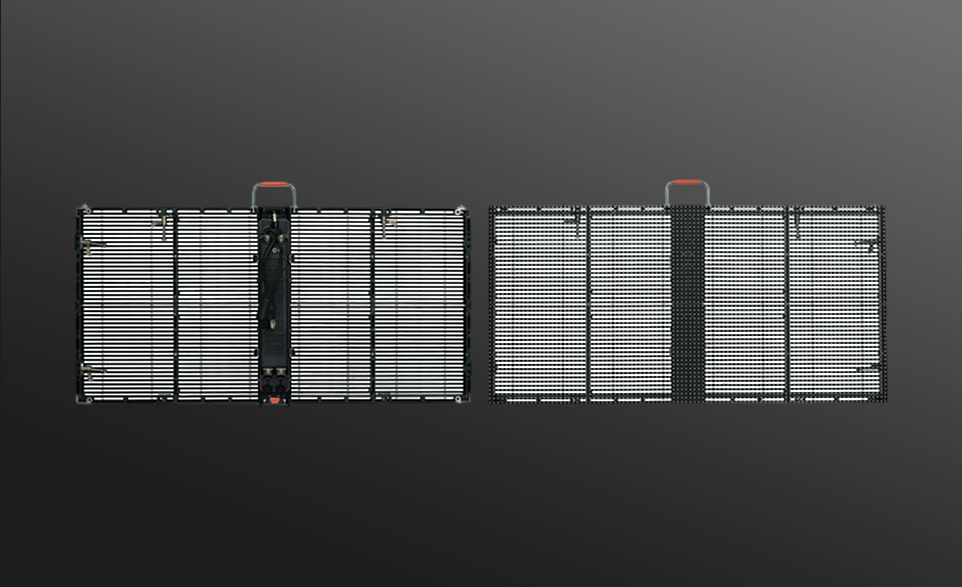

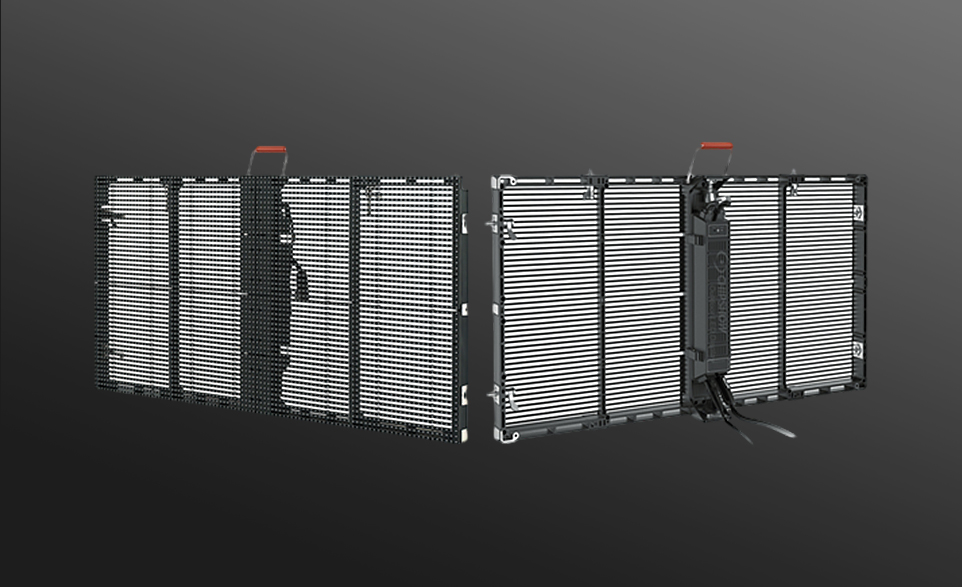

Structure of transparent screen

The transparent screen consists of at least two or more boxes to form any structure, display systems can be designed to be very large, and can also be divided into several and moving areas.

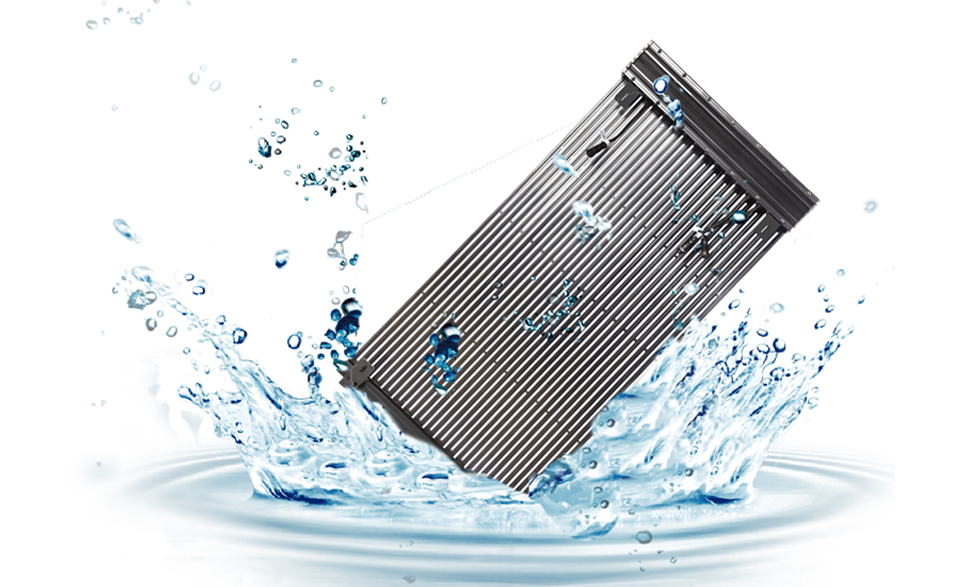

High protection level, safe and reliable

IP65/IP54 protection level, fully waterproof design, suitable for any bad weather. Install leakage protector, multiple protection, protection is everywhere.

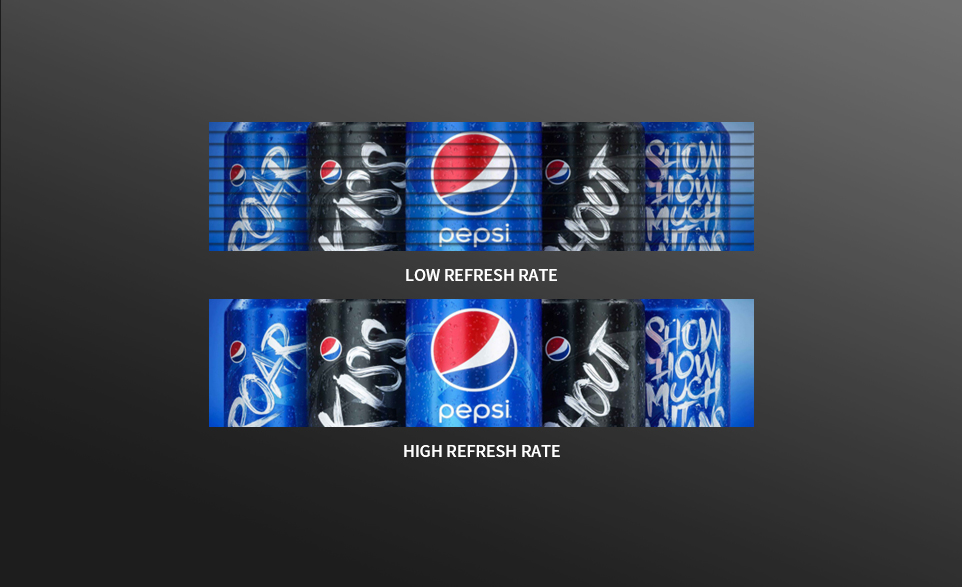

High refresh rate

The high refresh rate of ≥3840Hz ensures that the picture display is stable without smudges, flickering, and frame loss. The signal delay ensures the consistency of picture playback.

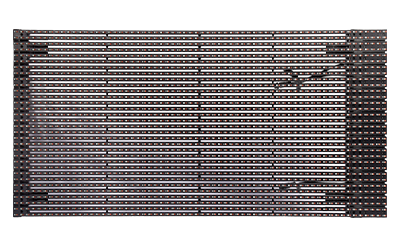

Product parameters

Products moduleT10T15.6
Pixel pitch(mm)1015.625
Pixel density(dots/m²)100004096
LED encapsulationSMD2727DIP346
Driving method1/2Static
Resolution of module(dot)50*2532*2
Module size(mm)500*2501000*31.25
Module consumption(W)46-
Working voltage(V)3.8/3.23.8/3.2
Max.consumption(W/m²)380260
Ave.consumption(W/m²)12090
Brightness(CD/m²)70008000
Color temperature(K)3200~93003200~9300
View angle(H/V)100°/55°100°/55°
Transparency(%)30%45%
Refresh rate(Hz)38403840
Working temperature-40~55℃-40~55℃
Protect degree(F/B)IP65IP65
Grey/scale14bit14bit
