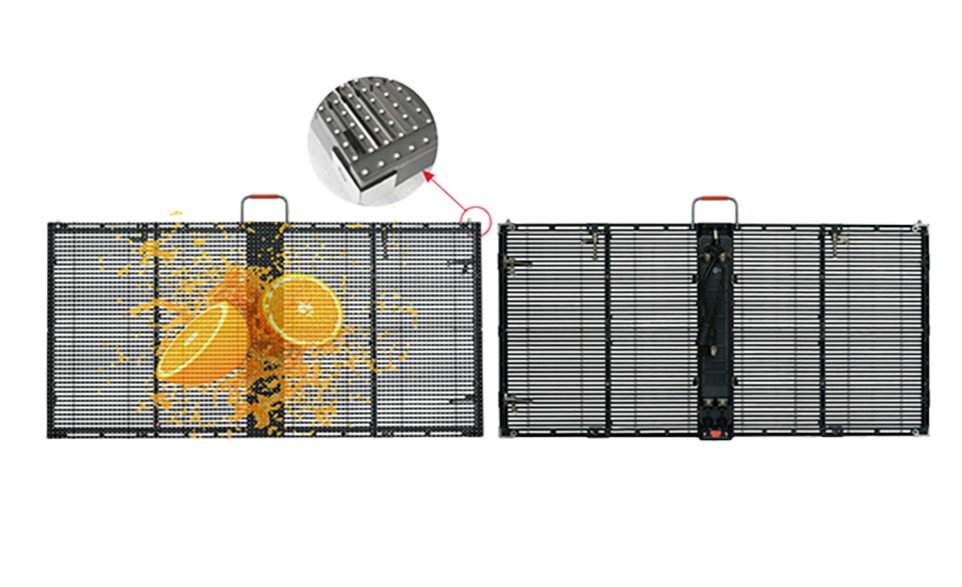

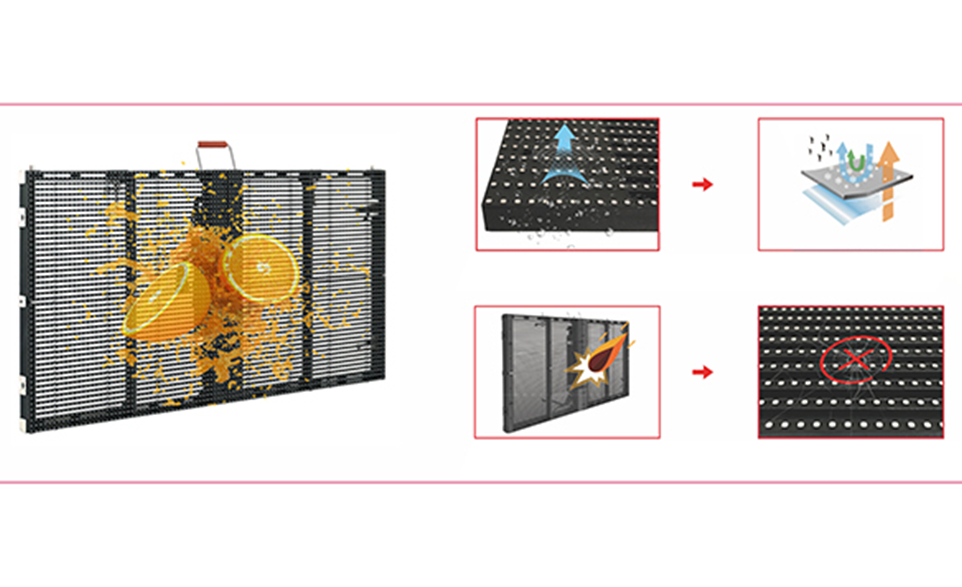

The Leds are fully sealed with IP65, achieving resistance to water,diot and shock.
The transparent screen has a transparency of 60%-95%,with IP65 protection grade, and splicing seamlessly.

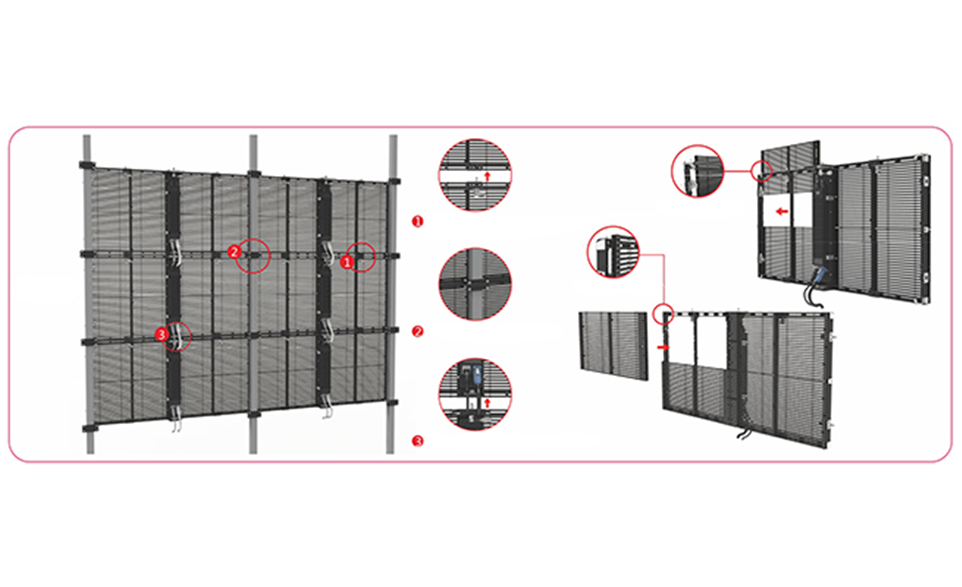

Light in weight, no need to change the structure of the building, and can be directly fixed on the glass curtain wall.
| Products module | C-Trans3.9-7.8 | C-Trans5.2-10.4 | C-Trans10.4 | C-Trans15.6 |
| Pixel pitch(mm) | V3.9*H7.8 | V5.2*H10.4 | V10.4*H10.4 | V15.6*H15.6 |
| Pixel density(dots/㎡) | 32768 | 18432 | 9216 | 4096 |
| LEDencapsulation | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Driving method | 1/8 | 1/4 | 1/2 | Static |
| Resolution of module(dot) | 128*32 | 96*24 | 48*24 | 32*16 |
| Module size(mm) | 500*250 | 500*250 | 500*250 | 500*250 |
| Module consumption(W) | 100 | 100 | 100 | 100 |
| Working voltagel（V) | DC4.7土0.2 | DC4.7土0.2 | DC4.7土0.2 | DC4.7土0.2 |
| Max.consumption(W/㎡) | 800 | 800 | 800 | 800 |
| Ave.consumption(W/㎡) | 260 | 260 | 260 | 260 |
| Brightness(CD/㎡) | 4500 | 4500 | 4500 | 5500 |
| Color temperature(K) | 6500-8000 | 6500-8000 | 6500-8000 | 6500-8000 |
| View angle(H/V) | 120° | 120° | 120° | 120° |
| Transparency(%) | 50 | 60 | 60 | 75 |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| Working temperature | ﹣20~50℃ | ﹣20~50℃ | ﹣20~50℃ | ﹣20~50℃ |
| Protect degree(F/B) | IP65 | IP65 | IP65 | IP65 |
| Grey/scale | 16bit | 16bit | 16bit | 16bit |
