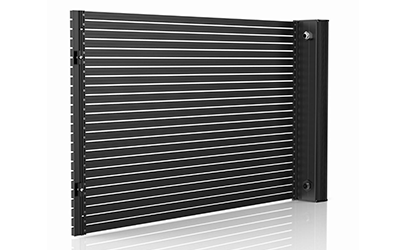

HV Series_Outdoor Grille Screen_Product

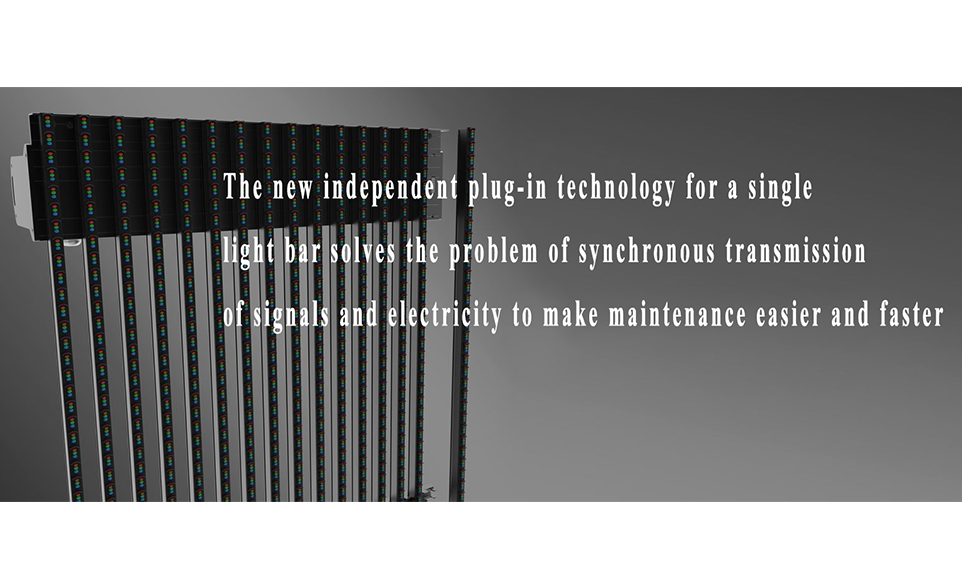

The new independent plug-in technology for a single

light bar solyes the problem of synchronous transmission

of signals andeelectricity to make maintenance easier and faster

: Make maintenance easier and faster

The new independent plug-in technology for a single light bar solves the problem of synchronous transmission of signals and electricity to make maintenance easier and faster

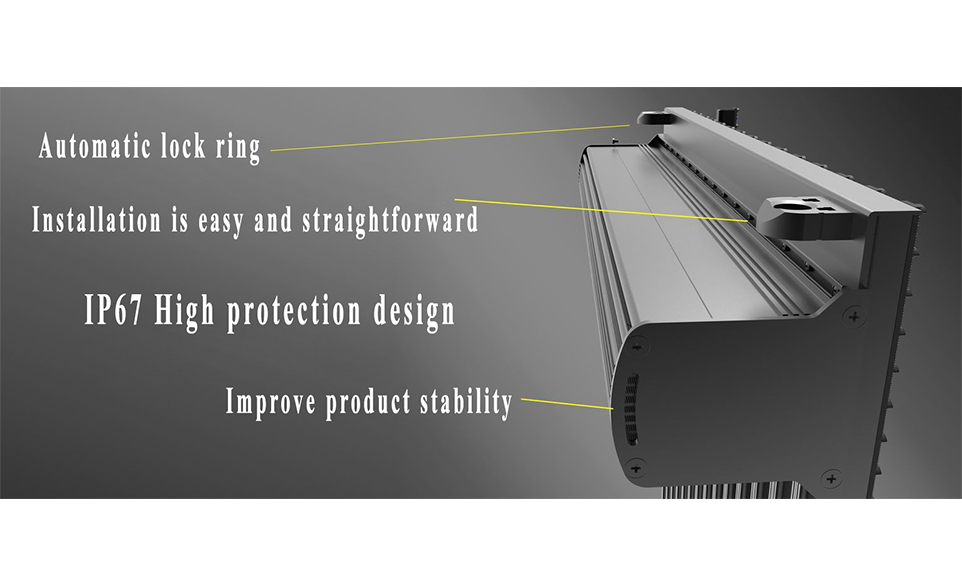

: IP67 High protection design Improve product stability

Automatic lock ring Installation is easy and straightforward IP67 High protection design Improve product stability

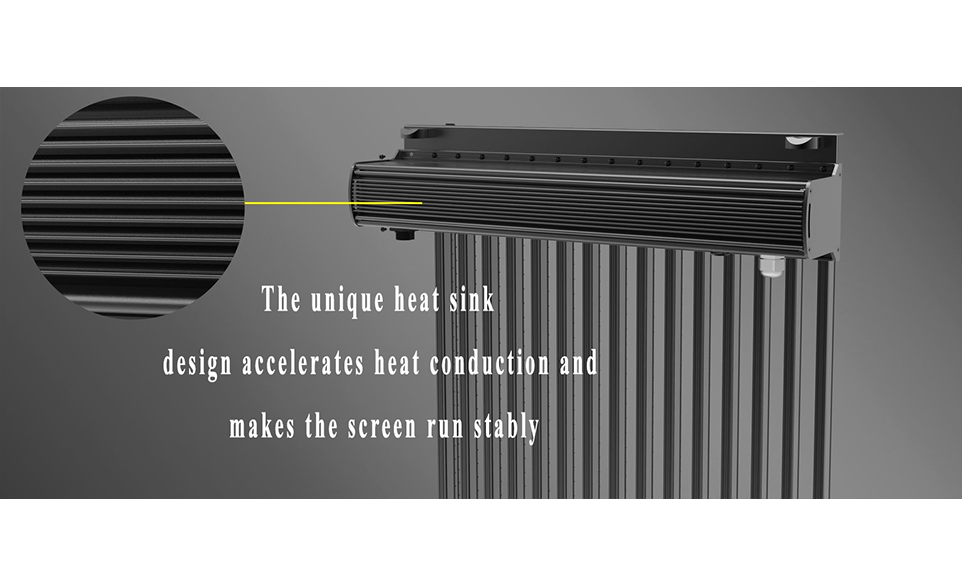

: The unique heat sink design accelerates heat conduction and makes the screen run stably

The unique heat sink design accelerates heat conduction and makes the screen run stably

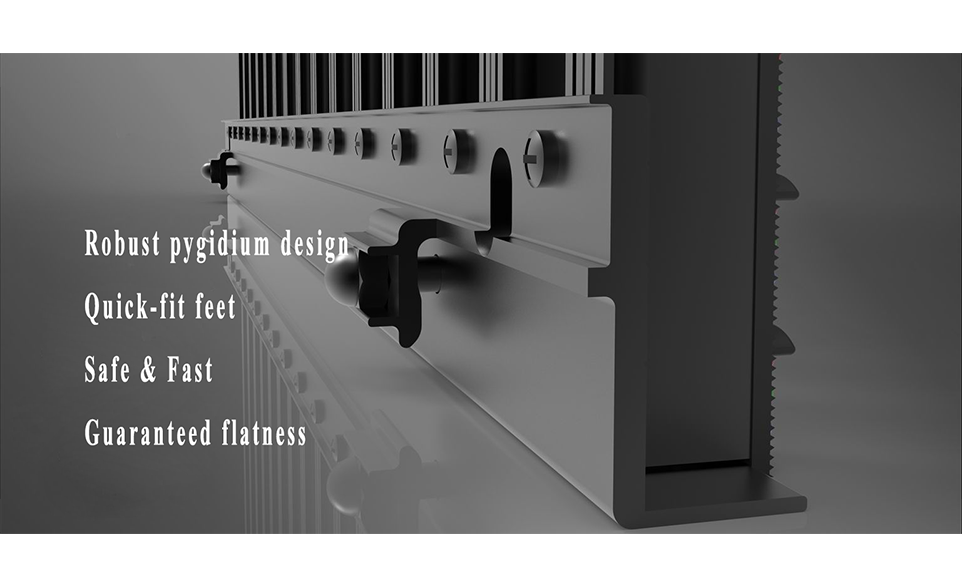

: Robust pygidium design

Robust pygidium design Quick-fit feet Safe & Fast Guaranteed flatness

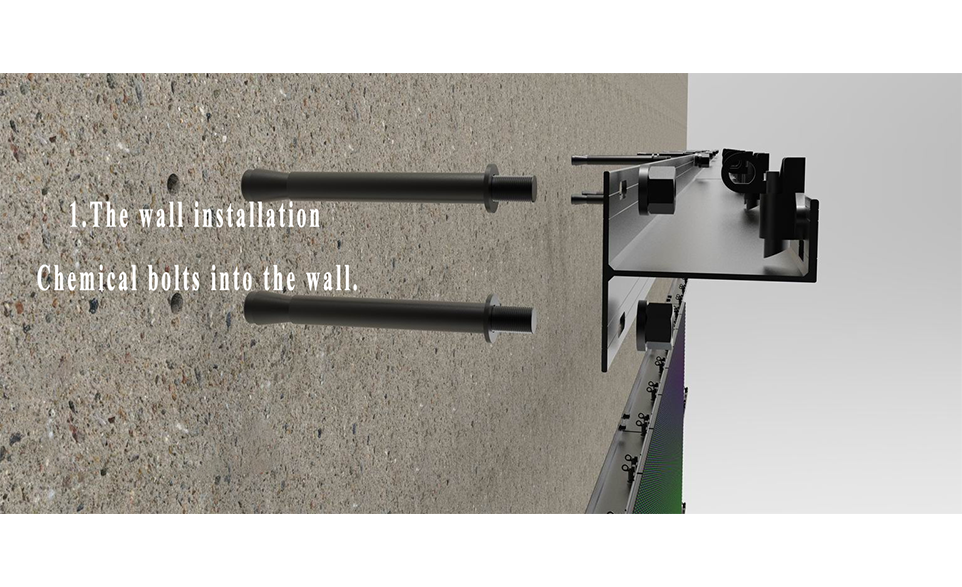

: The wall installation Chemical bolts into the wall.

The wall installation Chemical bolts into the wall.

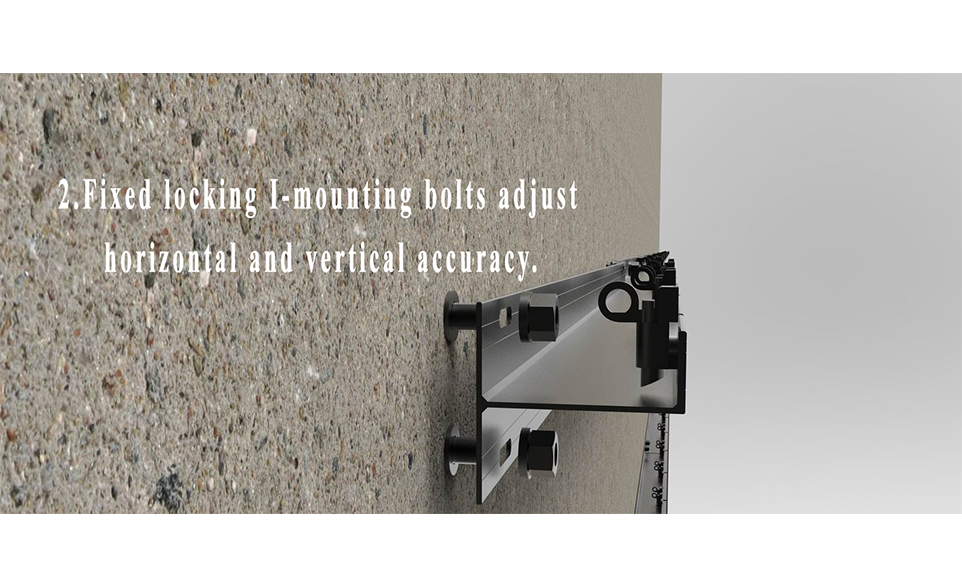

: Fixed locking I-mounting bolts adjust horizontal and vertical accuracy.

Fixed locking I-mounting bolts adjust horizontal and vertical accuracy.

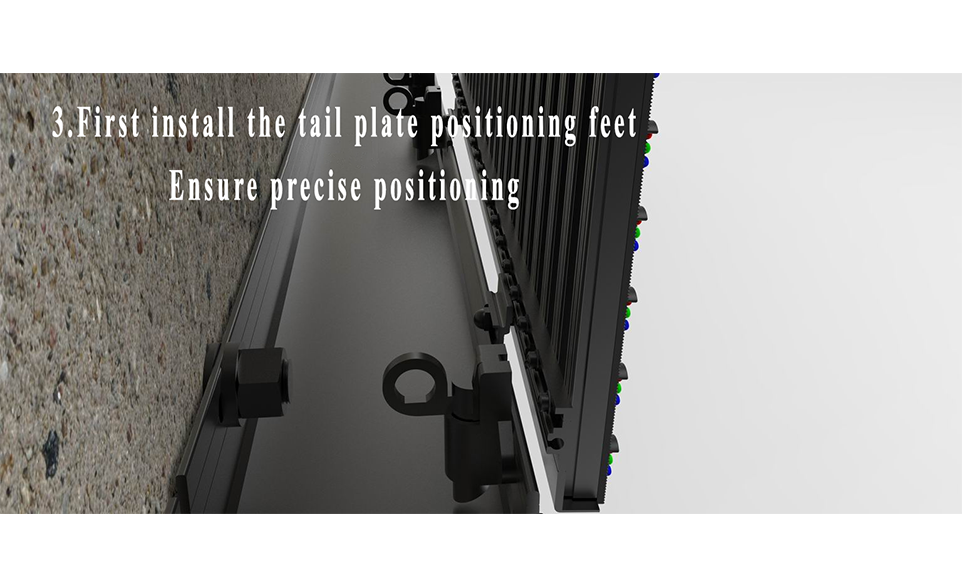

: First install the tail plate positioning feet Ensure precise positioning

First install the tail plate positioning feet Ensure precise positioning

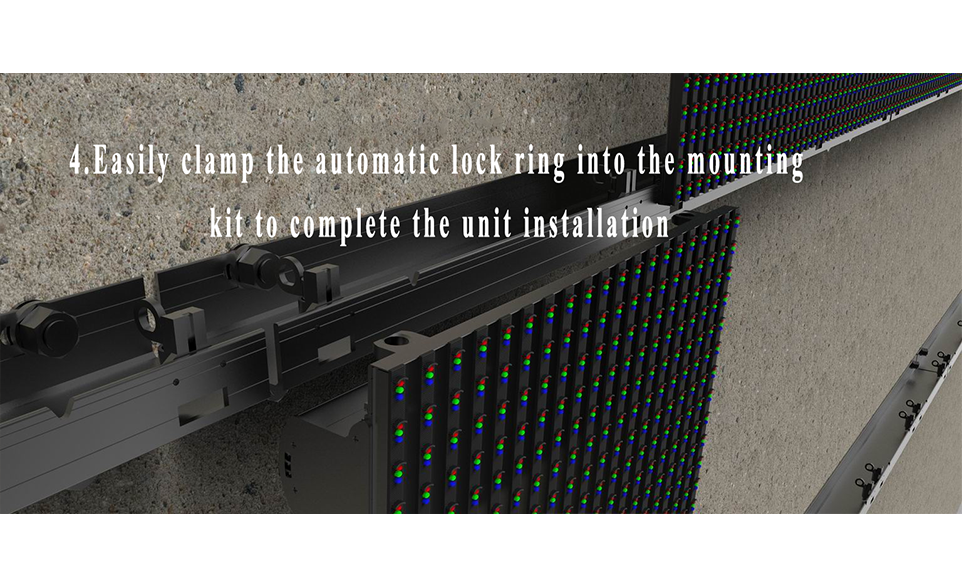

: Easily clamp the automatic lock ring into the mounting kit to complete the unit installation

Easily clamp the automatic lock ring into the mounting kit to complete the unit installation

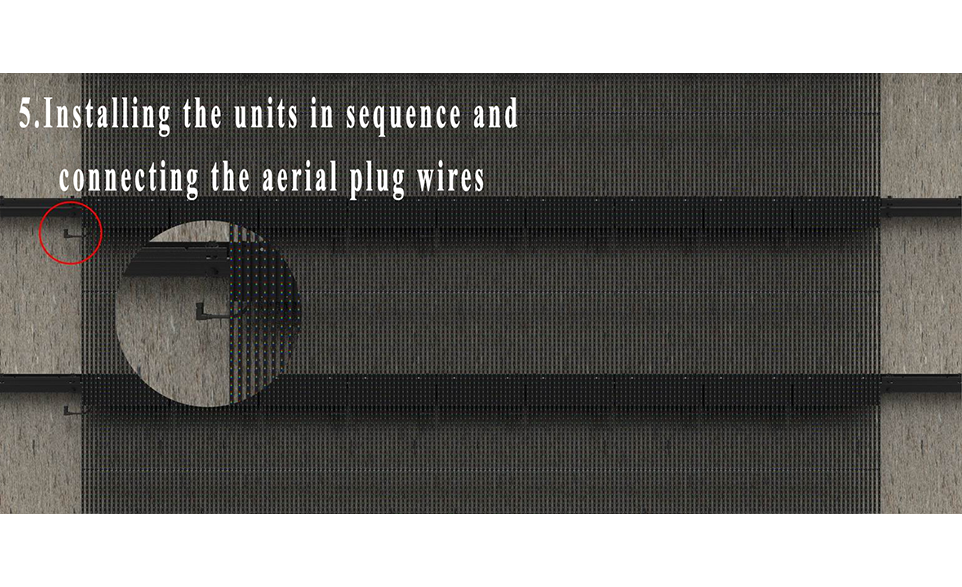

: Installing the units in sequence and connecting the aerial plug wires

Installing the units in sequence and connecting the aerial plug wires

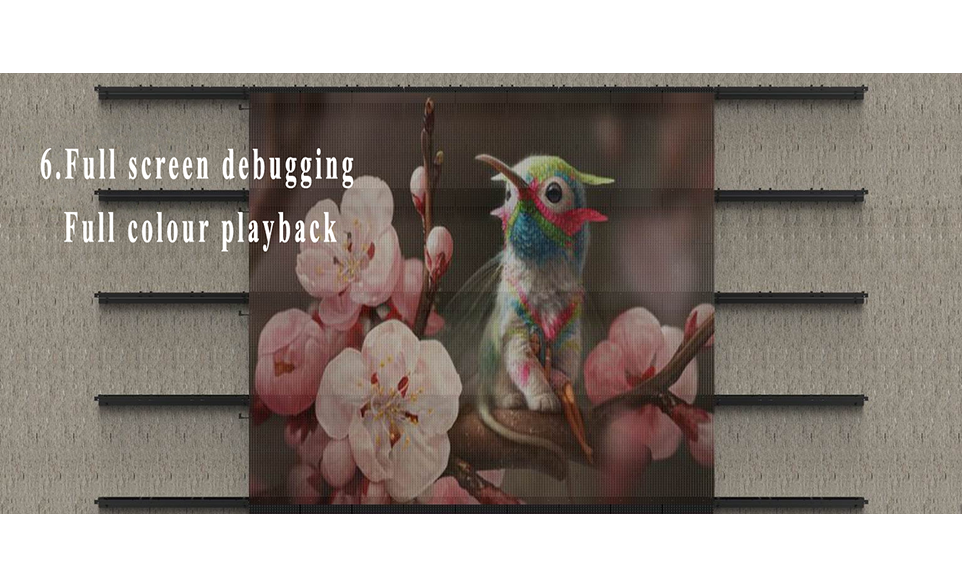

: Full screen debugging Full colour playback

Full screen debugging Full colour playback

Product model	HV10
Pixel unit	1R1G1B
LED lamp	Table sticker 3 in 1
Pixel spacing	10.4mm
Cell size	L500×H1000mm
Number of unit light strips	24roots
Cell resolution	96×48dots
Pixel resolution	9216dots/㎡
Cell direction	Vertical/Level
permeability	18%
brightness	≥8500nit
Screen weight	26KG/㎡
Peak power consumption	460W/㎡
Average power consumption	160W/㎡
perspective	H120°/V60°
Protection class	IP67
Light strip structure	Single root double column
Strip width	17mm
Product thickness	113mm
Mounting thickness	150mm
Heat dissipation mode	Structural strengthening Natural convection
Wind resistance class	Level 12
Power supply configuration	High-efficiency PFC dedicated power supply
Installation mode	Quick Installation
Fire safety	10s/Rapid demolition of units
Fire resistance	Full V0 grade flame retardant
Maintenance mode	Front, back
Driving mode	2sweep
Display color temperature	3200-9300K
Frame change rate	60Hz
Operating temperature	-40℃~60℃
Storage temperature	-55℃~120℃
Service life	≥100,000hours
Input voltage	AC110-220V
Gray level	16bit
Seismic capacity	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
