Feature Parameter

COB touch all-in-one machine

Using COB module, it has the characteristics of lighter weight, stronger pressure resistance, larger viewing angle, stronger heat dissipation, waterproof and moisture-proof;

COB touch all-in-one machine

Industrial grade substrate power supply, supports 90-240V, 50~60HZ AC input;

Product can be operated by touch;

The new hardware molded fuselage structure design greatly improves the stability of the entire machine assembly process;

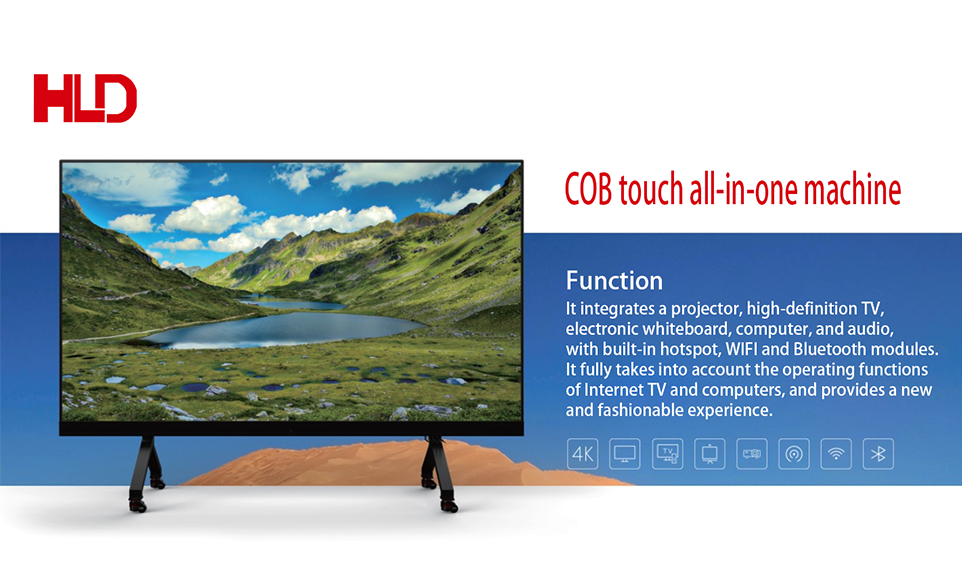

COB touch all-in-one machine

It integrates a projector, high-definition TV, electronic whiteboard, computer, and audio, with built-in hotspot, WIFI and Bluetooth modules. It fully takes into account the operating functions of Internet TV and computers, and provides a new and fashionable experience.

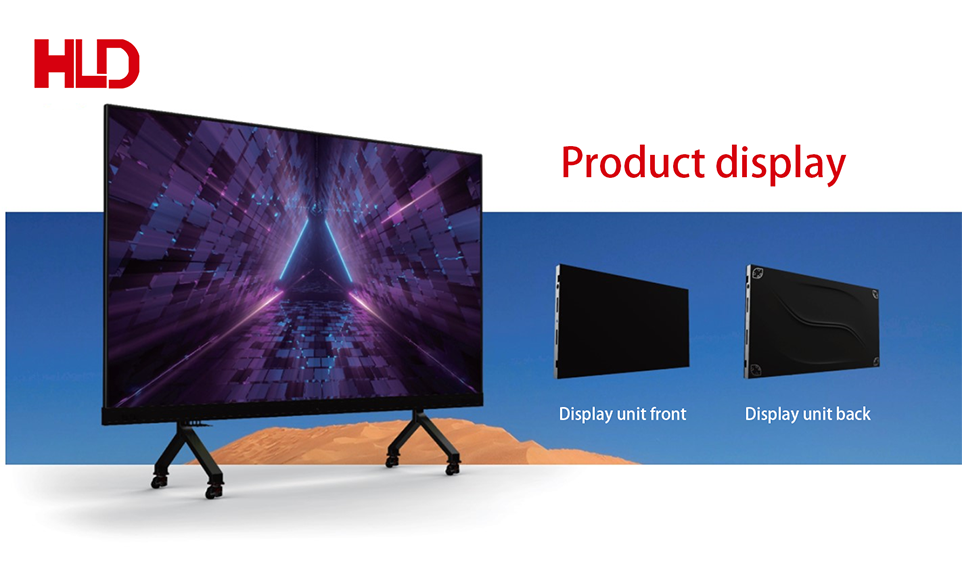

Product display

Display unit front and back

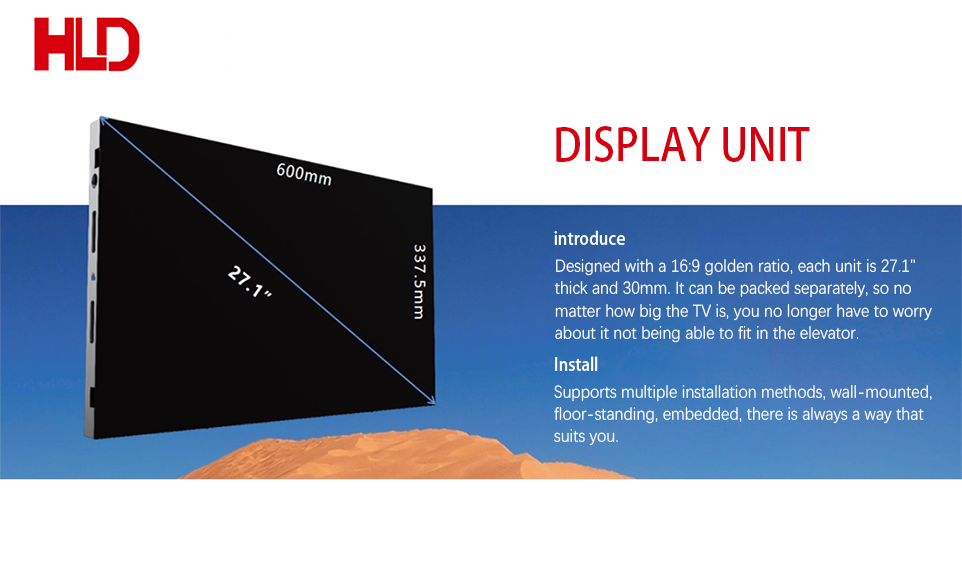

introduce and Install

Designed with a 16:9 golden ratio, each unit is 27.1" thick and 30mm. It can be packed separately, so no matter how big the TV is, you no longer have to worry about it not being able to fit in the elevator. Supports multiple installation methods, wall-mounted, floor-standing, embedded, there is always a way that suits you.

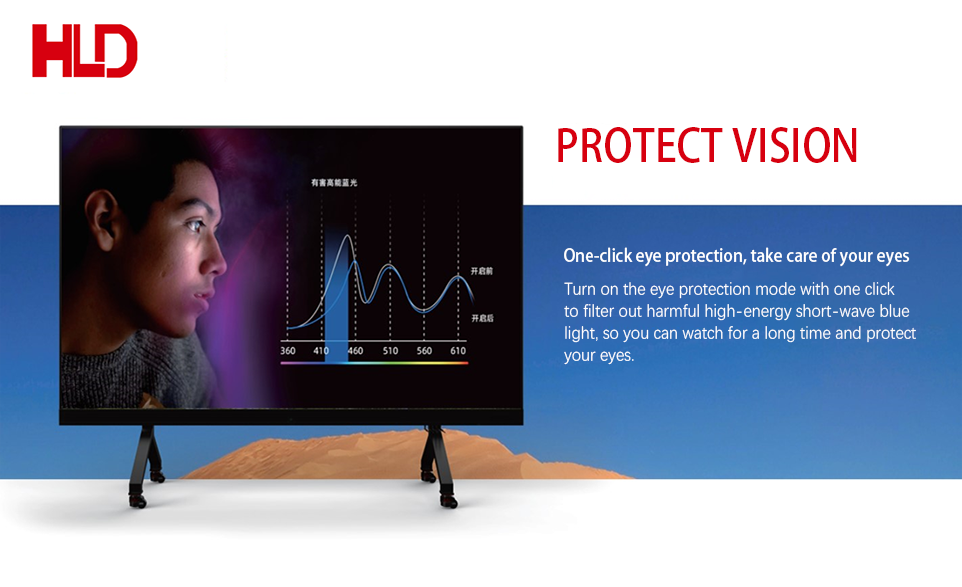

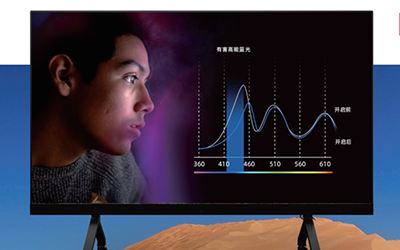

One-click eye protection, take care of your eyes

Turn on the eye protection mode with one click to filter out harmful high-energy short-wave blue light, so you can watch for a long time and protect your eyes.

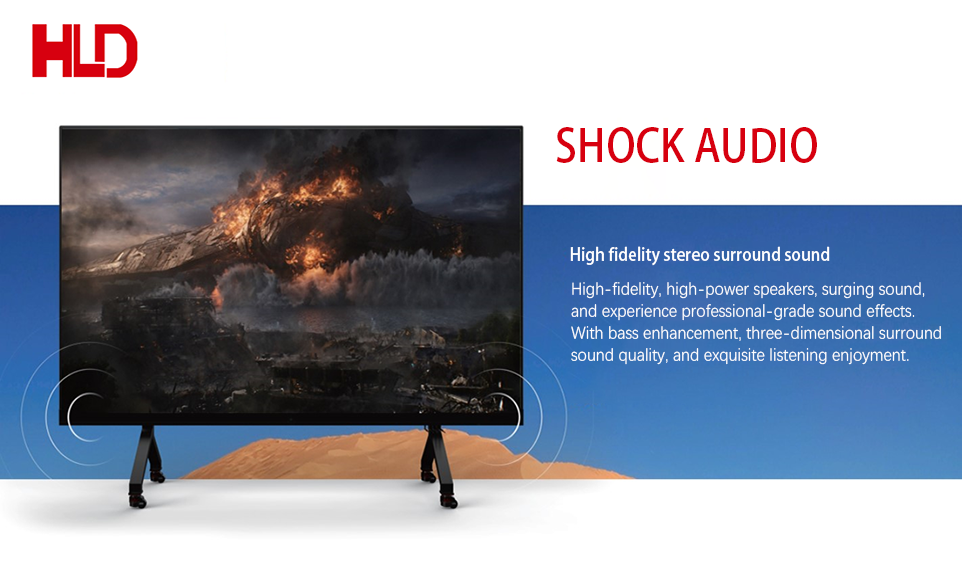

High fidelity stereo surround sound

High-fidelity, high-power speakers, surging sound, and experience professional-grade sound effects. With bass enhancement, three-dimensional surround sound quality, and exquisite listening enjoyment.

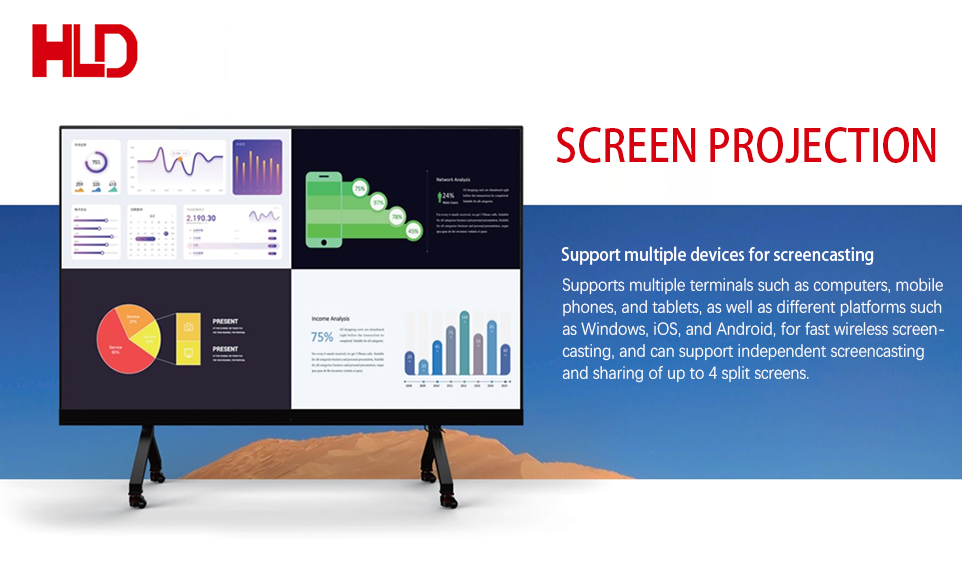

Support multiple devices for screencasting

Supports multiple terminals such as computers, mobile phones, and tablets, as well as different platforms such as Windows, iOS, and Android, for fast wireless screen- casting, and can support independent screencasting and sharing of up to 4 split screens.

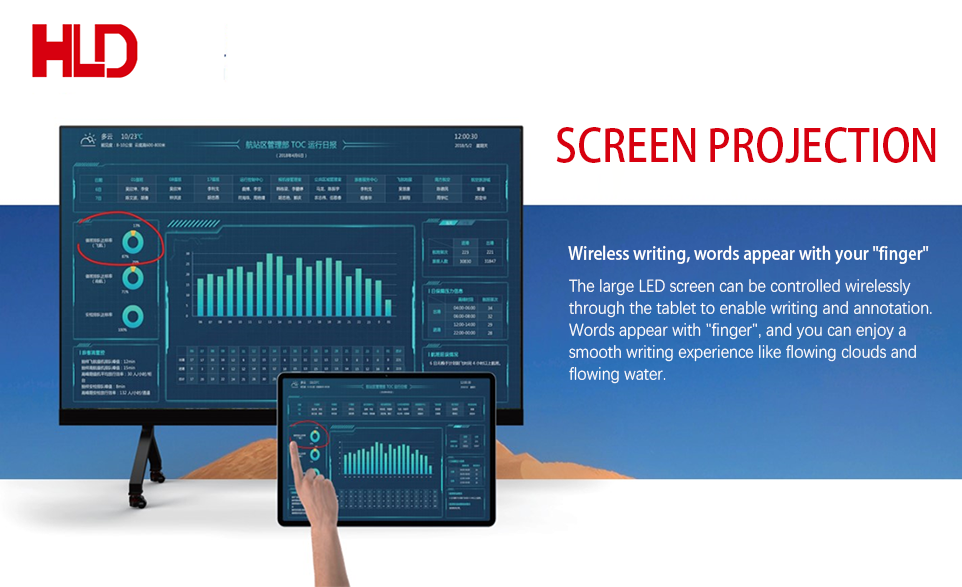

Wireless writing, words appear with your "finger"

The large LED screen can be controlled wirelessly through the tablet to enable writing and annotation. Words appear with "finger", and you can enjoy a smooth writing experience like flowing clouds and flowing water.

Dual system switching

Pre-installed Android and WIN 10 system Can be switched at will

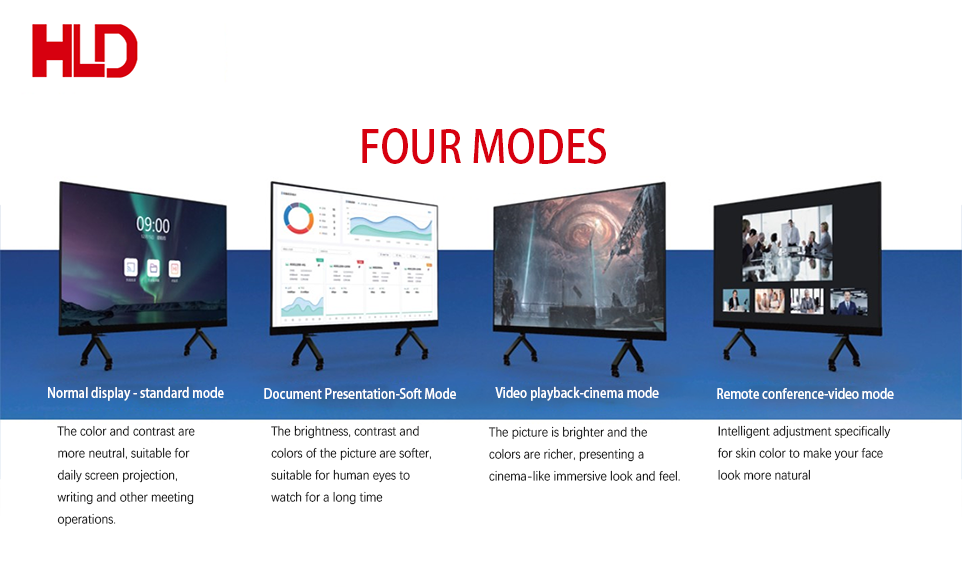

FOUR MODES

Normal display - standard mode Document Presentation-Soft Mode Video playback-cinema mode Remote conference-video mode

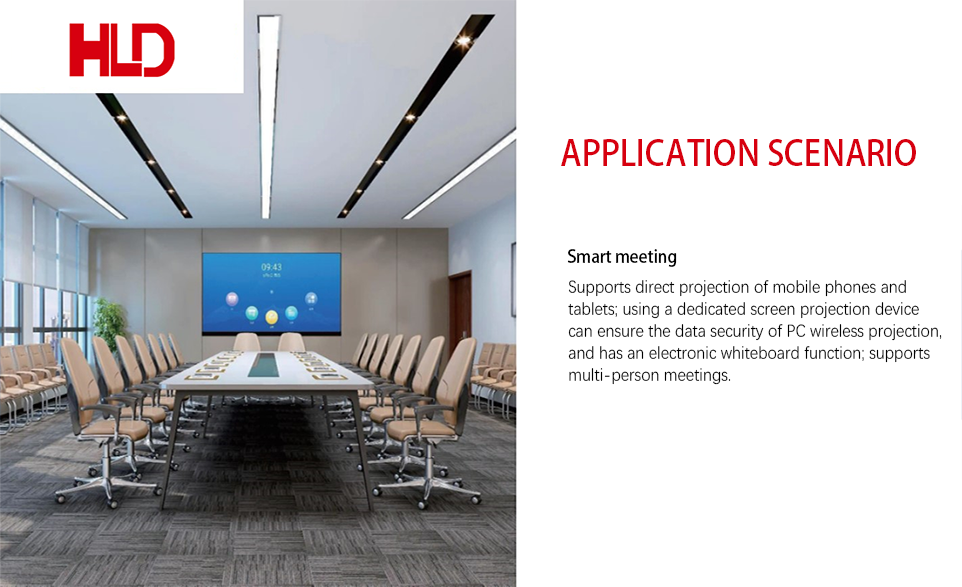

Smart meeting

Supports direct projection of mobile phones and tablets; using a dedicated screen projection device can ensure the data security of PC wireless projection, and has an electronic whiteboard function; supports multi-person meetings.

Home theater

The product has ultra-high-definition lossless audio and video transmission technology, which can exceed the listening experience of a five-star theater; and can be equipped with optional 3D function.

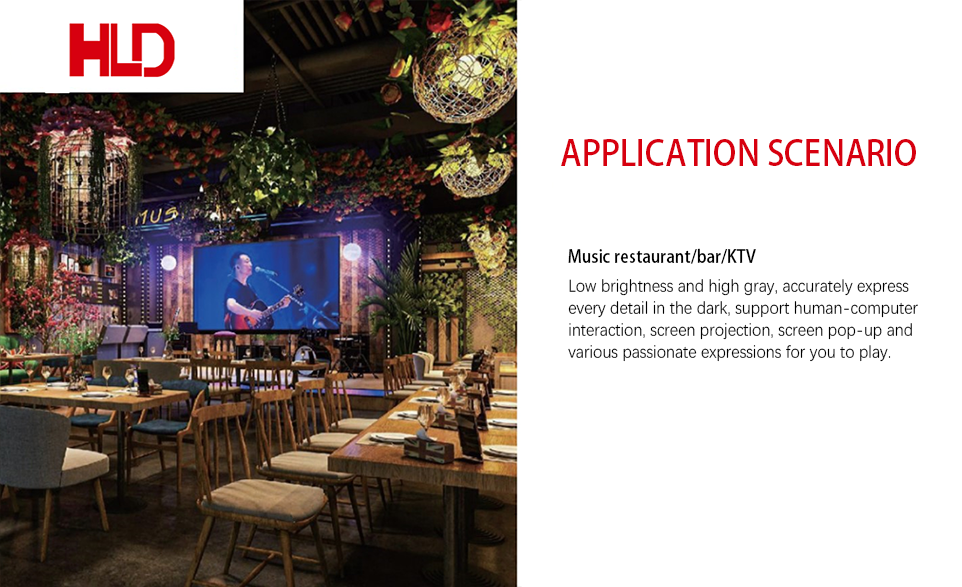

Music restaurant/bar/KTV

Low brightness and high gray, accurately express every detail in the dark, support human-computer interaction, screen projection, screen pop-up and various passionate expressions for you to play.

Product parameters

Product numberHLD 110HLD 135HLD 162
screen size110 inch135 inch162 inch
Panel typeflip COB LED
Screen Resolution1920*1080
Pixel pitch (mm)1.21.51.875
Screen brightness (cd/m2)450
Contrast100000:1
Viewing angle (horizontal/vertical)100000:1
Grayscale (bit)16
Refresh rate (Hz)384038403840
Screen unit protection levelIP65 (front)
Maintenance methodPre-maintenance
Built-in systemAndroid/Windows Dual system (optional)
Android hardware configurationHuawei HiSilicon V811+4G DDR+32G EMMC
Android versionAndroid 8.0
Windows system configurationI5 CPU+8G Memory + 256G solid state drive
Windows system versionWindows 10
touch technologyInfrared touch,10 dotInfrared touch,10 dotNone yet
Touch resolution (no driver required)32767*3276732767*32767None yet
Touch recognition size (mm)66None yet
Touch accuracy (mm)11None yet
Touch interaction methodFinger or soft-tipped stylusFinger or soft-tipped stylusNone yet
Response time(ms)9.59.5None yet
Support screen transmission terminalAndroid phone, iPhone, iPad, Windows computer, MAC computer
Hardware screen transmittersupport
Support multi-screen simultaneous interpretation9 split-screen
reverse controlSupport reverse control
Video resolution720P
Remote screencastingsupport
Cloud meeting recordingsupport
Hardware conference terminal compatible accessSupports access to mainstream hardware conference terminals from Huawei, Cisco, Polycom and other brands
Conference cloud live broadcastsupport
Camera4K ultra-high-definition resolution sensor, electronic pan/tilt control, digital zoom, and intelligent scene detection
omnidirectional wheat5 meters pickup distance, wireless transmission
writing whiteboardIntelligent multi-point writing whiteboardNone yet
voice controlBuilt-in voice assistant
Turn off the screen with one clickYou can enter the screen-off state with one key (or voice control) and wake up with one key
Built-in audiobuilt-in 2*15W
video inputHDMI*1 (side) ,HDMI*1(prefix)
Audio and video outputHDMI OUT*1,3.5mm Earphone*1 (side)
touch outputUSB-B*1 (side)None yet
Data input and outputUSB3.0*1,USB2.0*3 (front panel)
Network InterfaceLAN*1、Dual-band WIFI*2 (support wireless hotspot)
*Reference information, different configurations, different parameters
