Grille Screen

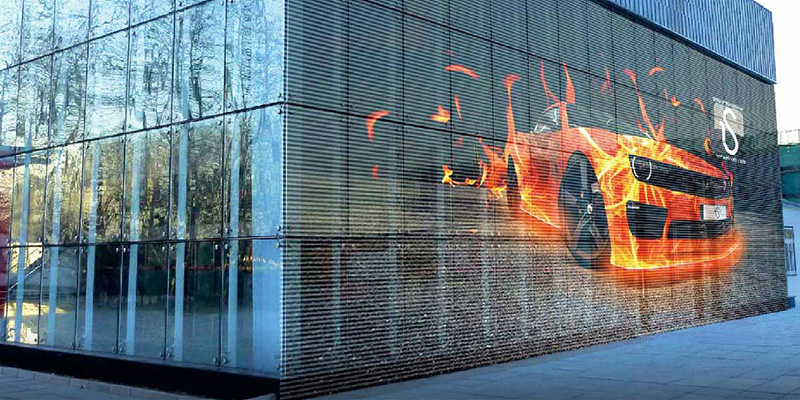

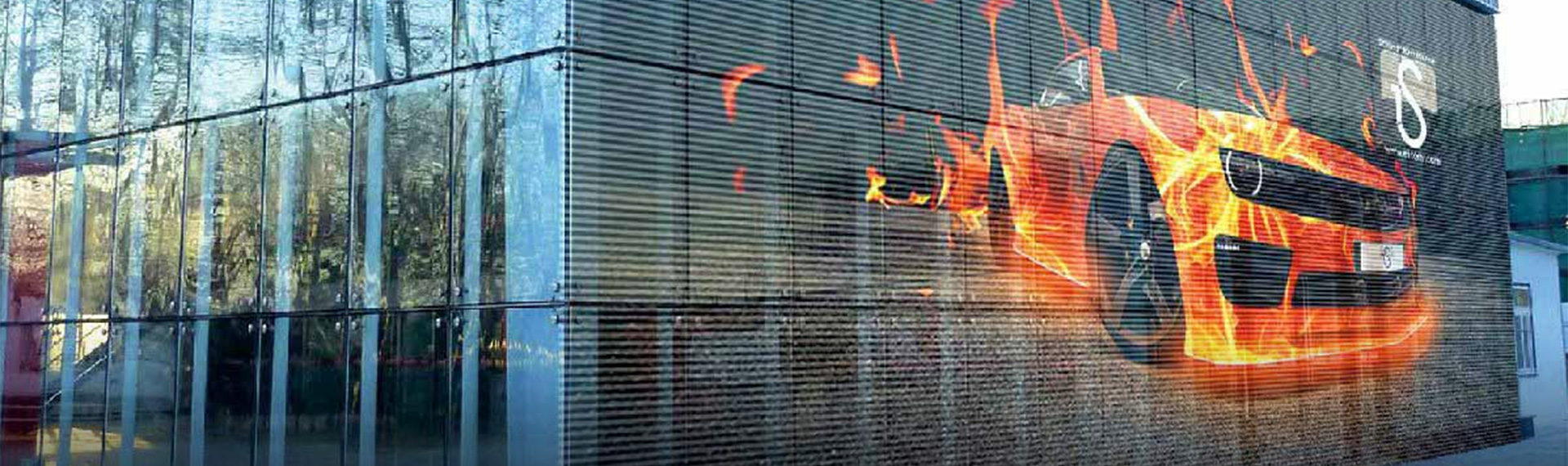

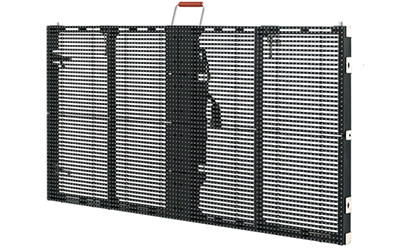

The grid screen is also called the hollow screen. It is a grid-shaped display screen composed of light bars. It is mainly used in outdoor buildings and indoor sightseeing elevators. It breaks through the limitations of traditional LEDs and can make engineering projects more flexible and easy. manage.

Program Features

Light weight, small wind load, suitable for super large display screens

Compared with the traditional LED display, the weight is 60%-80% lighter, which greatly reduces the strength and weight of the display infrastructure, especially for super-large-sized LED displays. The air permeability is 40%-50%. Strong wind resistance, effectively reducing the strength and weight of the LED display infrastructure

Simple structure, easy installation and maintenance

With a small number of components, it can be easily attached to the wall without damaging the wall and foundation. Pre-maintenance or post-maintenance can be conveniently implemented as required. If the front maintenance method is adopted, there is no need to set up a maintenance channel.

With a good automatic heat dissipation system, there is no need to increase the heat dissipation of the air conditioner

Each LED light bar is made of aluminum alloy, with good light transmission around it, which can achieve good self-dissipation. At the same time, the power supply, control, etc. are isolated from the light-emitting materials, and no special cooling system is required, such as LED screens.

Highly integrated light bar structure, high product stability

Through the unique electronic circuit design, the number of light strip connections is reduced, and every 16 shares a set of power and signal connectors. Under the same conditions, the bad connection rate can be reduced by 94%.

Integrated design of control box and installation structure

The control box is both part of the screen and part of the screen. The structure of the screen is greatly simplified, and no plugs and connections can be seen on the appearance of the screen. Not only beautiful, but also greatly improved the stability of the screen. High brightness, high refresh, high gray scale, can be played during the day.

Related Products

B6 Series

Specifications for outdoor - 960 * 960 die-cast aluminum full-color LED display

Learn More

COB touch all-in-one machine

Using COB module, it has the characteristics of lighter weight, stronger pressure resistance, larger viewing angle, stronger heat dissipation, waterproof and moisture-proof;

Learn More

S Series

Pixel Pitch : 7.8/10mm
Module size : 500*100mm

Learn More

TS Series

Pixel Pitch : V3.9*H7.8/V5.2*H10.4/V10.4*H10.4/V15.6*H15.6
Module size : 500*250mm

Learn More

RT Series

Product model :RT31A/RT50B
Pixel unit：1R1G1B
LED lamp：DIP346
Pixel spacing：31.25mm/50mm
Cell size : L:1000mm-2000mm

Learn More
