Soft mask protects athletes and LEDs.

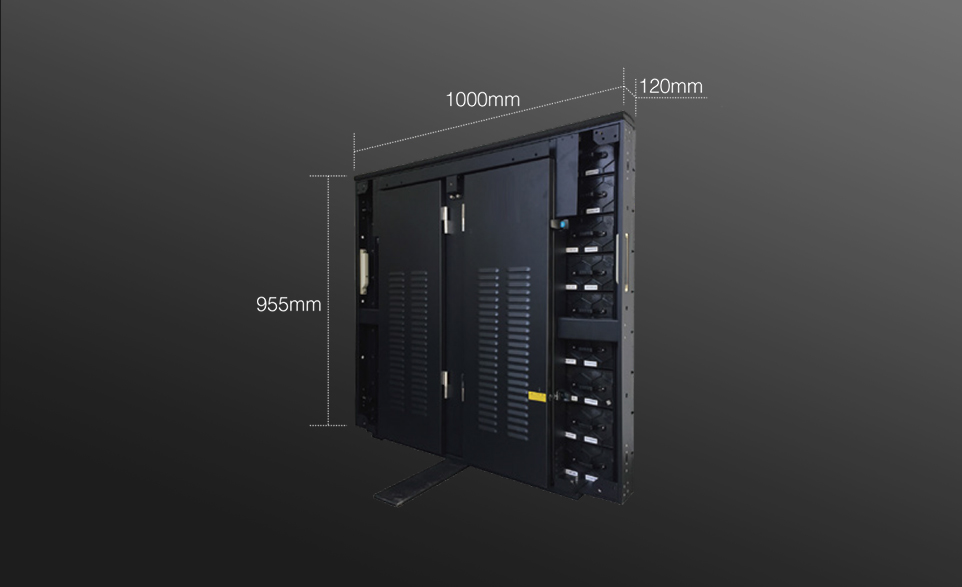

Cast aluminum cabinet, light and thin with good heat dissipation.
Good compatibility, it can be used as both a perimeter and rental LED display to meet different needs of customers.
1/3 energy saved than traditional LED display.
Professional software, diversifing input of camera video sources, supporting DP, HDM1, VGA, SDL, DVD, etc.

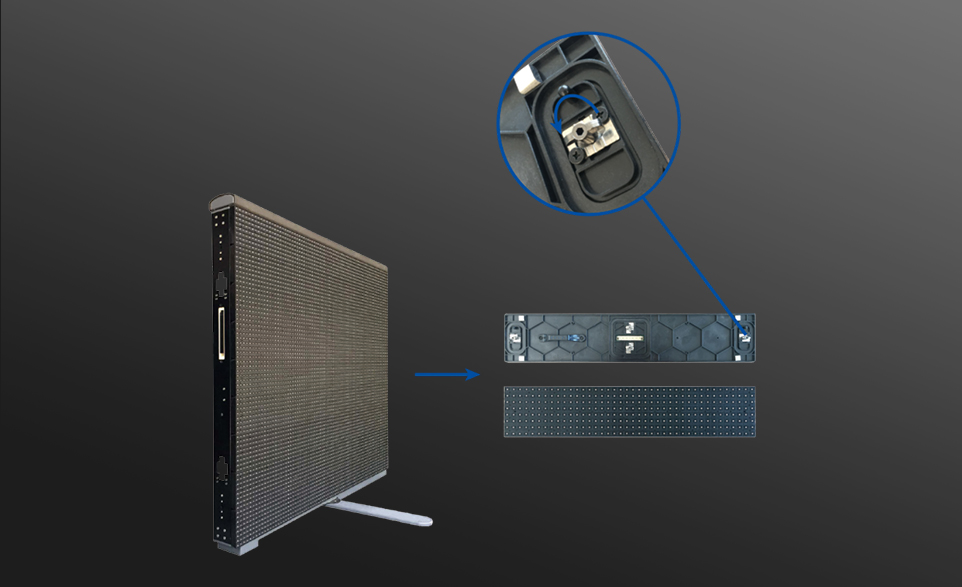

Dual maintenance of the module.
| Products module | S8 | S10 |
| Pixel pitch(mm) | 7.8mm | 10mm |
| Pixel density(dots/m²) | 16384 | 10000 |
| LED encapsulation | SMD2727 | SMD2727 |
| Driving method | 1/4 | 1/2 |
| Resolution of module(dot) | 64*13 | 50*10 |
| Module size(mm) | 500*100 | 500*100 |
| Module consumption(W) | 32 | 30 |
| Working voltage(V) | 3.8/3.2 | 3.8/3.2 |
| Max.consumption(W/m²) | 680 | 600 |
| Ave.consumption(W/m²) | 180 | 170 |
| Brightness(CD/m²) | 6000 | 6000 |
| Color temperature(K) | 6000~8000 | 6000~8000 |
| View angle(H/V) | 120°/120° | 120°/120° |
| Refresh rate(Hz) | 3840 | 3840 |
| Working temperature | -20~50℃ | -20~50℃ |
| Protect degree(F/B) | IP65/IP54 | IP65/IP54 |
| Grey/scale | ≥14bit | ≥14bit |
