Feature Parameter

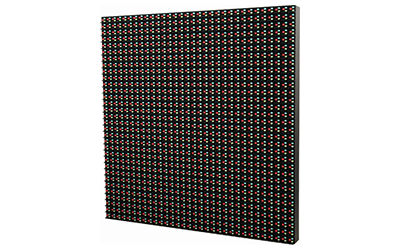

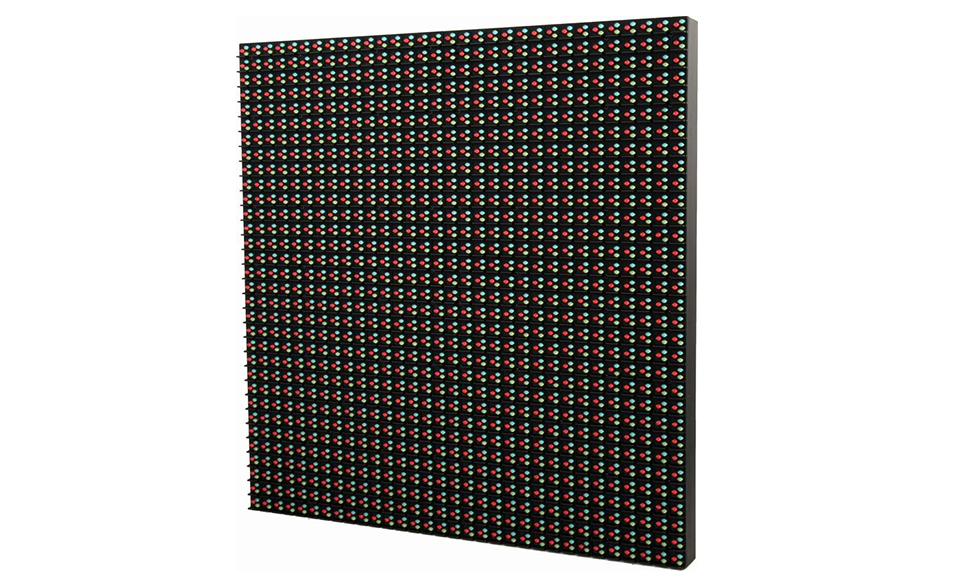

MT Series

Application fields: Outdoor advertising media, government and enterprise engineering, cultural tourism, sports competitions, image promotion, commercial real estate.

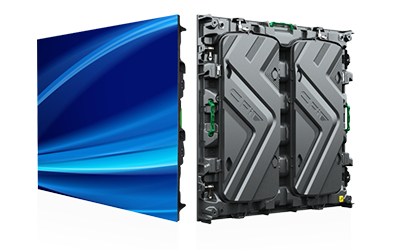

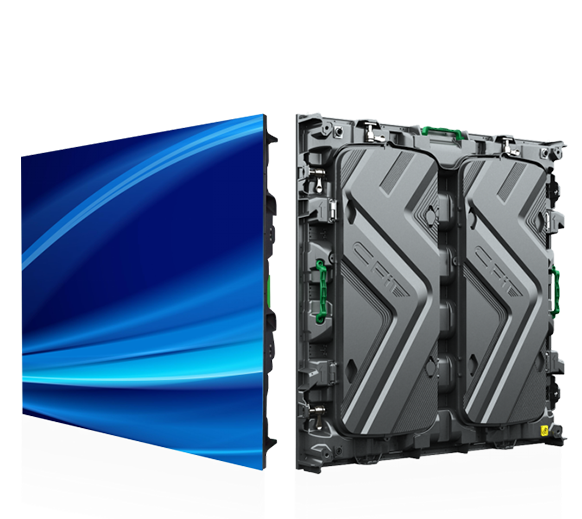

MT Series

The protection grade of the module is IP65, which meets the demand for outdoor bare Installation;

Dark black is sturdy and durable: Special formula molded plastic material, with strong UV resistance and high contrast, ensures that the screen is flat without deformation;

Quick and flexible: Standard cabinet can be stocked, and modules with different pixel pitch can be installed according to different projects, with rapid shipment and flexible response;

Simplify the installation and maintenance: Familiarize yourself with one type and master all, reducing the difficulty and workload of sales, engineering, training, and maintenance;

Easy to upgrade and replace: Standardized general modules, universal spare parts, and higher density modules can be replaced on the original structure and cabinet;

Application fields: Outdoor advertising media, government and enterprise engineering, cultural tourism, sports competitions, image promotion, commercial real estate.

Features

High safety: All-aluminum bottom shell, high ignition point, high fire rating, can be certified by TUV 5VB fire test. Specially designed waterproof ring, multi-layer waterproof protection, protection grade up to IP65; High stability: All-aluminum material, dense corrugated heat sink design, high heat dissipation efficiency; Partial voltage power supply design, low heat, long life span; Hard connection design, high stability; High performance: Innovative circuit design, high brightness efficiency, can achieve 10000 cd/㎡.

Features

High convenience: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space; Light-weighted design, the weight can be as light as 30kg/㎡, and the thickness can be as thin as 77mm; Modules can be interchanged left and right to reduce maintenance costs; High contrast: The innovative design mask improves the contrast, with the brim height of 2.5mmt; The mask has high accuracy, low tolerance and no module.

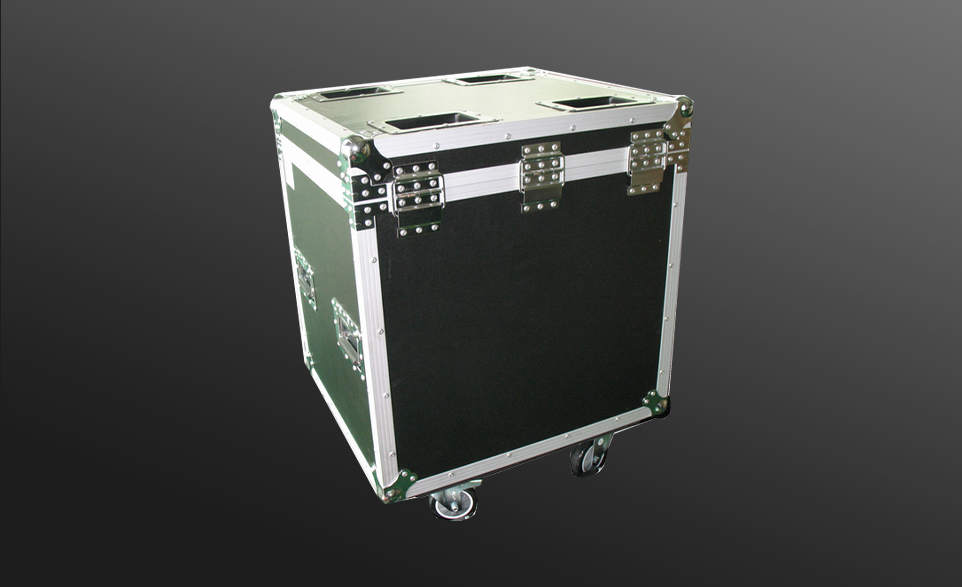

Package Parameters

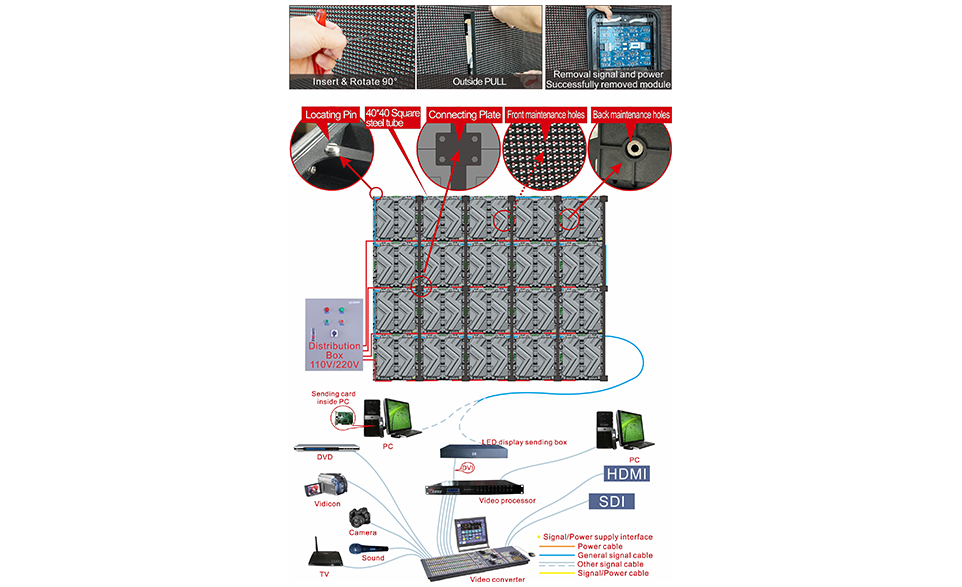

Assembly Sketch Map/Power Cable And Signal Cable Connection Sketch Map

Assembly Sketch Map/Power Cable And Signal Cable Connection Sketch Map

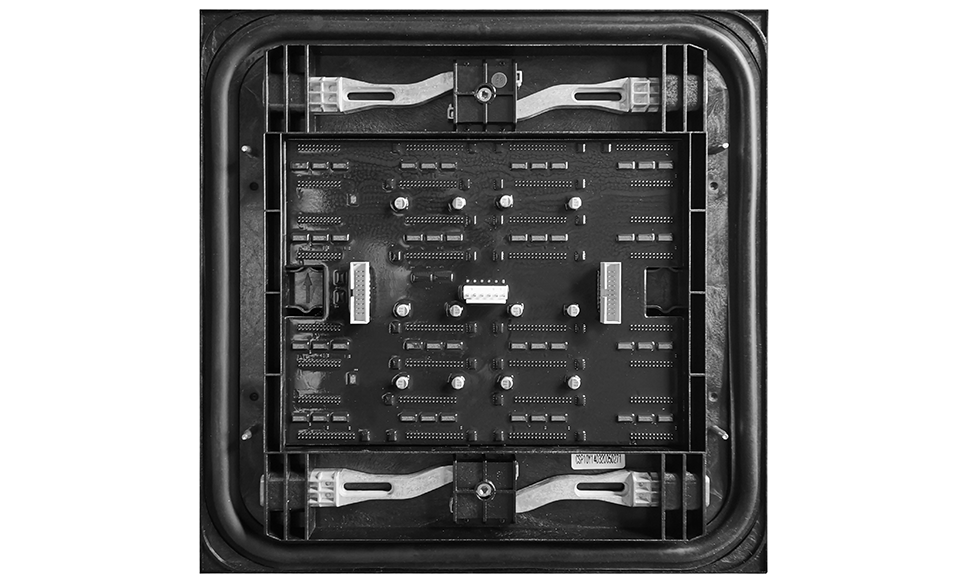

Product parameters

ItemSpecification Parameter
Pixel Pitch10mm
Resolution rate32*32 Dots
size320*320*30mm
Pixel color1R1G1B
Pixel LEDDIP346
Working voltageWorking voltage
Module Power60W
Driving ICMBI5124
Driving way1/4
HUBHUB 75
MaterialAluminum/Sheet metal
Cabinet Weight(kg/Cabinet)39kg/Cabinet
Resolution rate96*96Dots
size960*960*150mm
Module quantity3*3
Density10000 Dots/㎡
White balance 8500CD/㎡
Color temperature6500-8000K
view angelH/V:110°/55°
Non-Flatness<0.5mm
Module interval<0.5mm
Maximal power/㎡600W/㎡
Average power/㎡240W/㎡
Frame frequency60Hz
Refresh frequency1920Hz
Gray grade14bit
Control system/System supportsWindows XP,WIN 7
Working temperature-20℃ - +50℃
Protection gradeFront/Back:IP65/IP54
