Feature Parameter

M Series

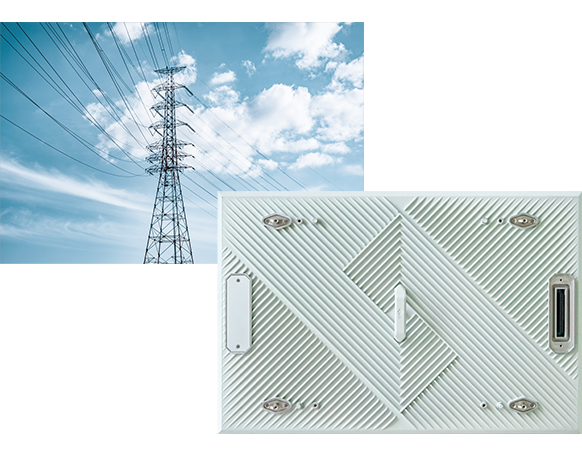

High safety: All-aluminum bottom shell, high ignition point, high fire rating, can be certified by TUV 5VB fire test. Specially designed waterproof ring, multi-layer waterproof protection, protection grade up to IP65; High stability: All-aluminum material, dense corrugated heat sink design, high heat dissipation efficiency; Partial voltage power supply design, low heat, long life span; Hard connection design, high stability; High performance: Innovative circuit design, high brightness efficiency, can achieve 10000 cd/㎡.

M Series

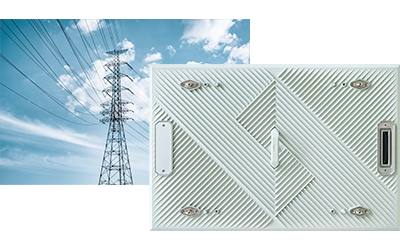

High convenience: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space;

Light-weighted design, the weight can be as light as 30kg/㎡, and the thickness can be as thin as 77mm;

Modules can be interchanged left and right to reduce maintenance costs;

High contrast: The innovative design mask improves the contrast, with the brim height of 2.5mmt;

The mask has high accuracy, low tolerance and no module.

Features

High safety: All-aluminum bottom shell, high ignition point, high fire rating, can be certified by TUV 5VB fire test. Specially designed waterproof ring, multi-layer waterproof protection, protection grade up to IP65; High stability: All-aluminum material, dense corrugated heat sink design, high heat dissipation efficiency; Partial voltage power supply design, low heat, long life span; Hard connection design, high stability; High performance: Innovative circuit design, high brightness efficiency, can achieve 10000 cd/㎡.

Features

High convenience: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space; Light-weighted design, the weight can be as light as 30kg/㎡, and the thickness can be as thin as 77mm; Modules can be interchanged left and right to reduce maintenance costs; High contrast: The innovative design mask improves the contrast, with the brim height of 2.5mmt; The mask has high accuracy, low tolerance and no module.

Package Parameters

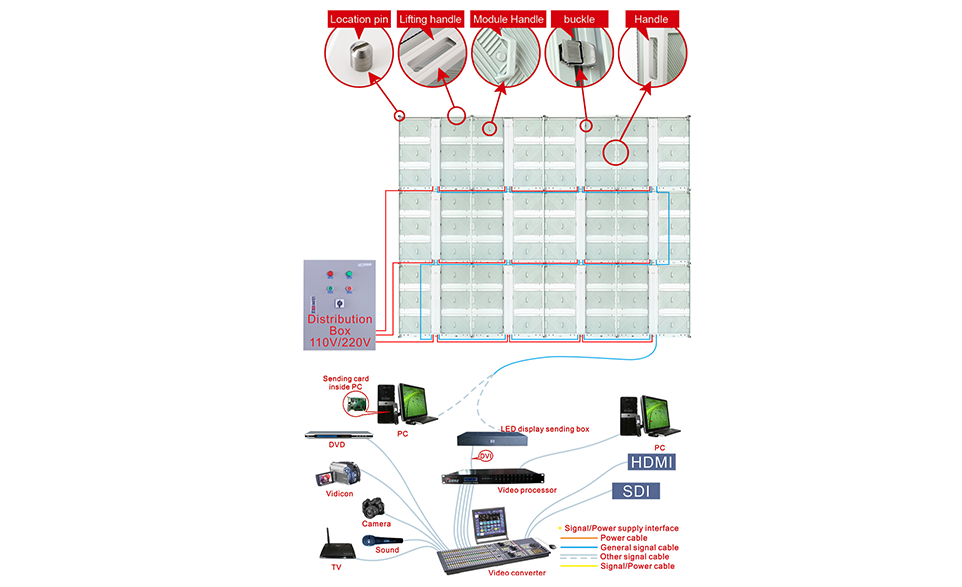

Assembly Sketch Map/Power Cable And Signal Cable Connection Sketch Map:

Product parameters

ItemSpecification Parameter

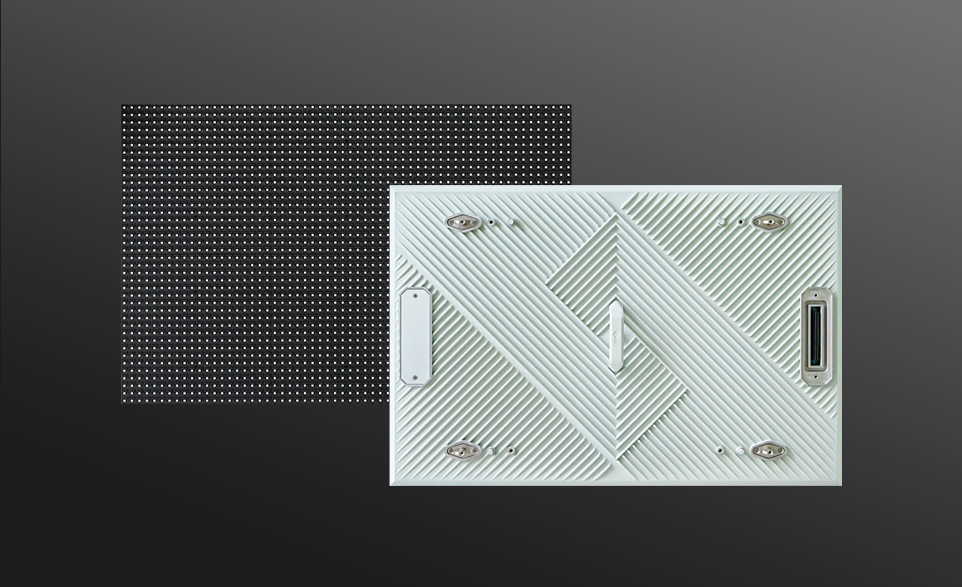

Module Parameter
Pixel Pitch、Resolution rate、size8mm、60*40、480*320mm
Pixel color、 Pixel LED1R1G1B、 SMD2727
Working voltage、Module Power3.2/3.3V、≤95W
Driving IC、Driving waySum2035、1/4
HUBHUB320

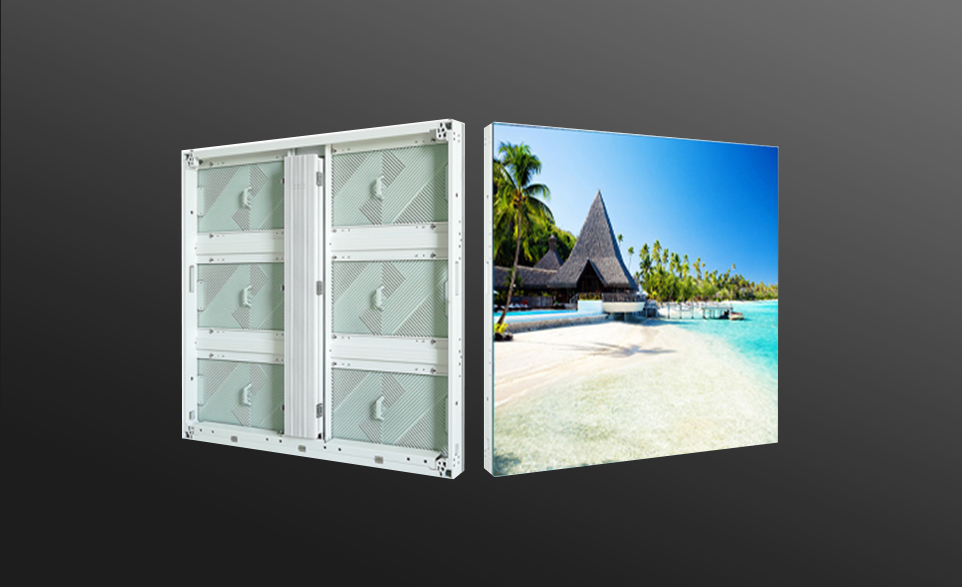

Cabinet Parameter
Material、Cabinet Weight(kg/Cabinet)Die-cast Aluminum、28kg /Cabinet
Resolution rate、size、Module quantity120*120Dots、960*960*77mm、2*3
Density15625Dots/㎡
Whitebalance 、Color temperature>10000CD/㎡、6000K-8000K
view angel、Non-Flatness、Module intervalH/V:140°/140°、<0.2mm、<0.2mm
Maximal power/㎡、Average power/㎡≤420W/㎡、≤120W/㎡
Frame frequency、Refresh frequency、Gray grade60Hz、≥3840Hz、14bit
Control system、System supportsWindows XP,WIN 7
Working temperature、Protection grade﹣20~50℃、Front/Back:IP65
*Reference information, different configurations, different parameters
Package Parameters
Gross Weight(kg)58kg(Estimated data,6pcs /Case)
Outer PackageSize720*630*560mm(Estimated data,6pcs /Case)
Packing MaterialWooden bracket + paper packaging + pearl cotton
