Adopt the low power supply scheme of common Yin and common Yang separately, and highlight 2727 lamps. The same brightness saves 50%
Energy compared with the traditional screen;
Fully enclosed module, supoort fullfront and rear maintenane no maintenance channel,can be attached to the wall installation；

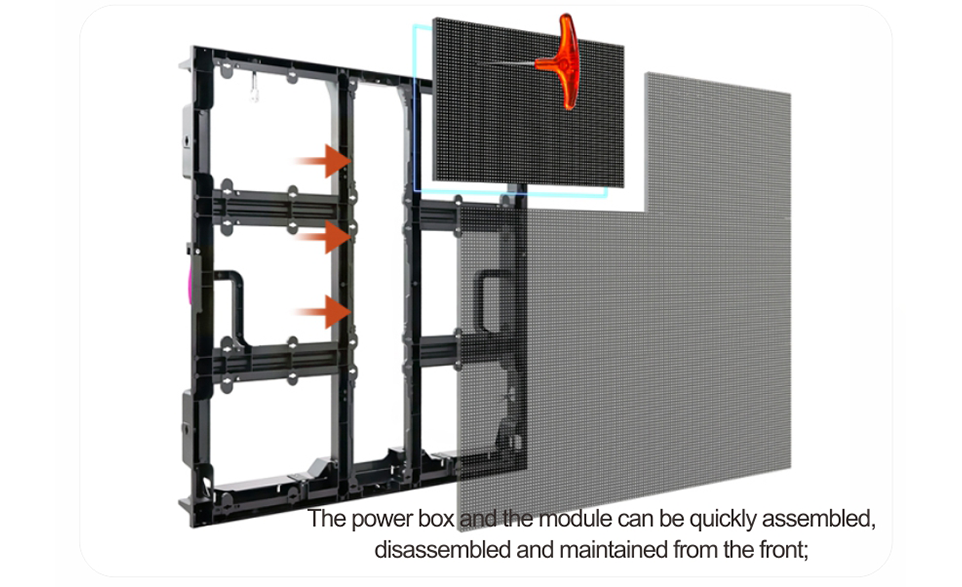

Module without screws, power box, module can be quickly before and after disassembly and assembly before and after maintenance；

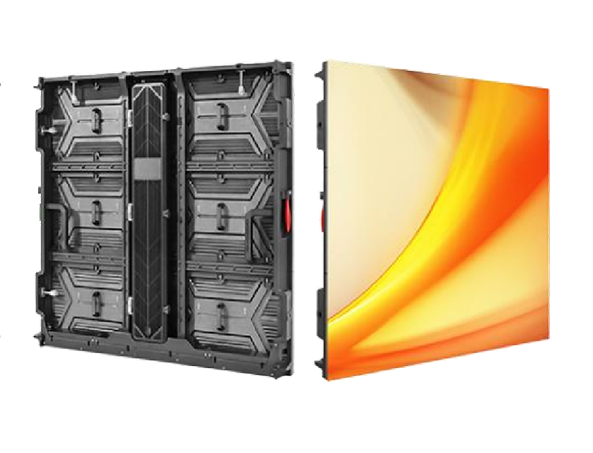

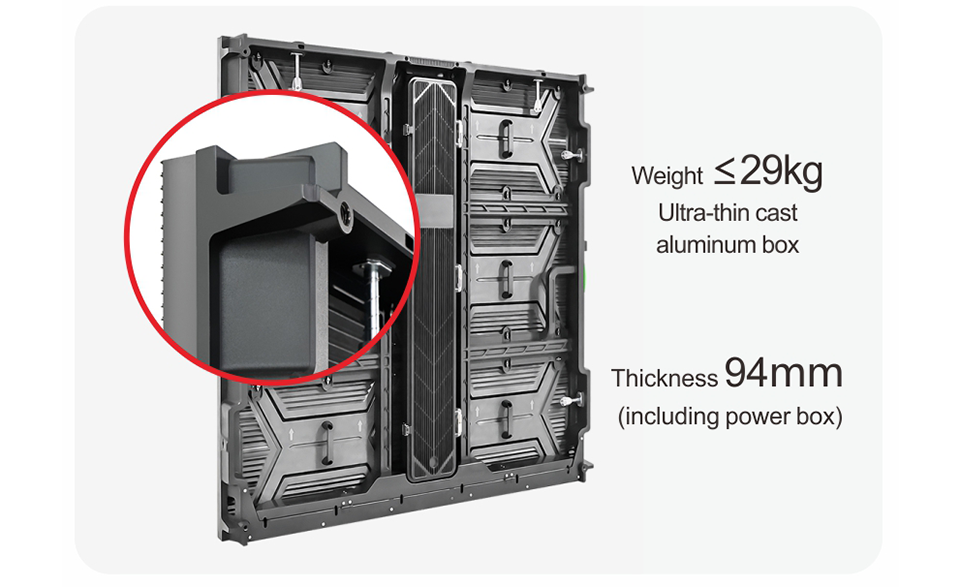

All cast aluminum box, ultra-light and ultra-thin, very high strength；
Power supply using dual voltage power supply, with automatic deployment of double output function, to ensure the stability of power supply.
The latest circuit design, EMC certification standards
| Products module | HD 6.67 | HD 8 | HD 10 | HD16 |
| Pixel pitch(mm) | 6.67 | 8 | 10 | 16 |
| Pixel density(dots/m²) | 22500 | 15625 | 10000 | 3906 |
| LED encapsulation | SMD2727 | SMD2727 | DIP346 | DIP346 |
| Driving method | 1/6 | 1/3 | 1/4 | Static |
| Resolution of module(dot) | 72*48 | 60*40 | 48*32 | 30*20 |
| Module size(mm) | 480*320 | 480*320 | 480*320 | 480*320 |
| Module consumption(W) | 66 | 64 | 48 | 45 |
| Working voltage(V) | 3.8/3.2 | 3.8/3.2 | 3.8/3.2 | 3.8/3.2 |
| Max.consumption(W/m²) | ≤400 | ≤380 | ≤260 | ≤250 |

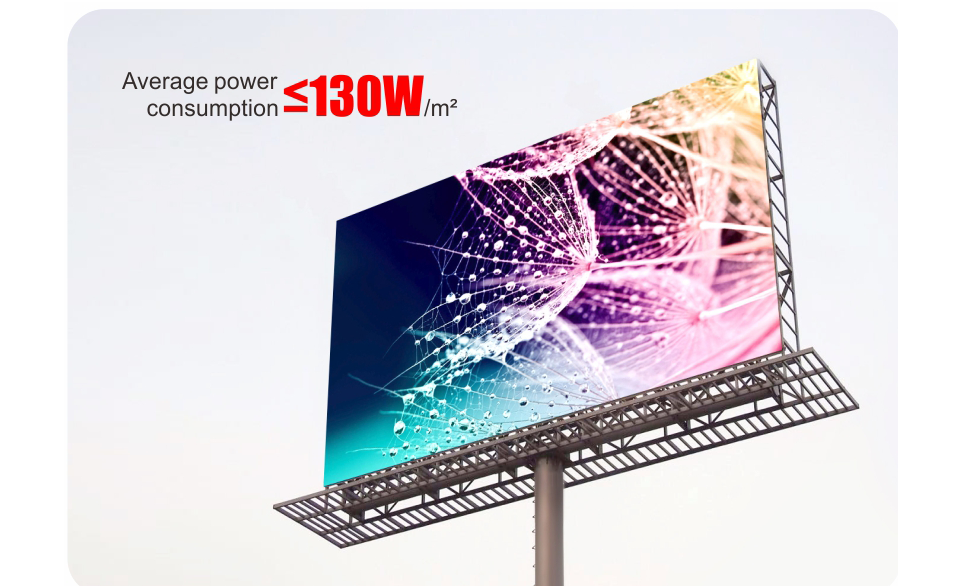

| Ave.consumption(W/m²) | ≤130 | ≤120 | ≤100 | ≤90 |
| Brightness(CD/m²) | 10000 | 8000 | 8000 | 8000 |
| Color temperature(K) | 6000~8000 | 6000~8000 | 6000~8000 | 6000~8000 |
| View angle(H/V) | 120° | 120° | 110°/50° | 110°/50° |
| Refresh rate(Hz) | 1920 | 1920 | 1920 | 3840 |
| Working temperature | -20~50℃ | -20~50℃ | -20~50℃ | -20~50℃ |

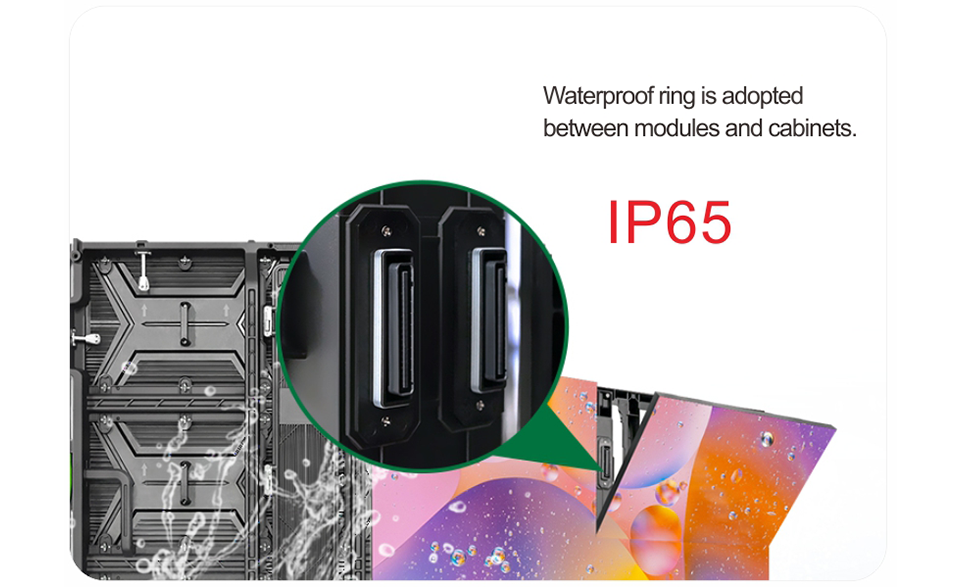

| Protect degree(F/B) | IP65 | IP65 | IP65 | IP65 |
| Grey/scale | ≥14bit | ≥14bit | ≥14bit | ≥14bit |
