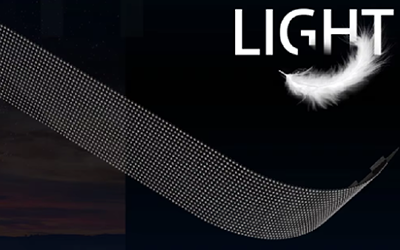

ULTRA-LIGHT&ULTRA-THIN DESIGN
Ultra-high Transparency
Various Installation
Easy Installation
Good heat dissipation ability
Lower maintenance and technology costs
Pixel Pitch (H/V) | W:3.9;H:3.9mm | W:6.25;H:6.25mm |
LED Configuration | SMD1415 3IN1 | SMD1415 3IN1 |
Pixel Density | 65536dot/㎡ | 25600dot/㎡ |
Transparency | <66.66% | <70% |
Scan method | 1/16 Scan(6 layer PCB) | Static(4 layer PCB) |
Refresh Rate | 1920-3840Hz | 1920-3840Hz |
Module Size | 375/750/1125/1500X125mm | 600/1200/1800X100mm |
Module Resolution | 96/192/288/384X32dot | 96/192/288X16dot |
Product Size | 375/750/1125/1500X500mm | 600/1200/1800X500/800mm |
Cabinet Resolution | 96/192/288/384X128dot | 96/192/288X80/128dot |
Cabinet Weight | 6kg/㎡ | 6kg/㎡ |
IP Rating ( front/back) | IP42 | IP42 |
Brightness | 1000-5000nits/㎡ | 1000-5000nits/㎡ |
Viewing Angle (H/V) | 140°/140° | 140°/140° |
Viewing Distance | 4m | 6 m |
Gray Scale | 16 bit | 16 bit |
Max.Power Consumption | 800W/m² | 800W/m² |
Ave.Power Consumption | 240W/m² | 240W/m² |
Environment | indoor | indoor |
Operation Power | AC:100_240V;50/60Hz | AC100_240V,50/60Hz |
Operating Temperature | ﹣10℃~40℃ (work) | ﹣10℃~40℃ (work) |
Operating Humidity | 10%～90%RH | 10%～90%RH |
Operating Life | 100,000hours | 100,000hours |
