1.ULTRA-LIGHT&ULTRA-THIN DESIGN

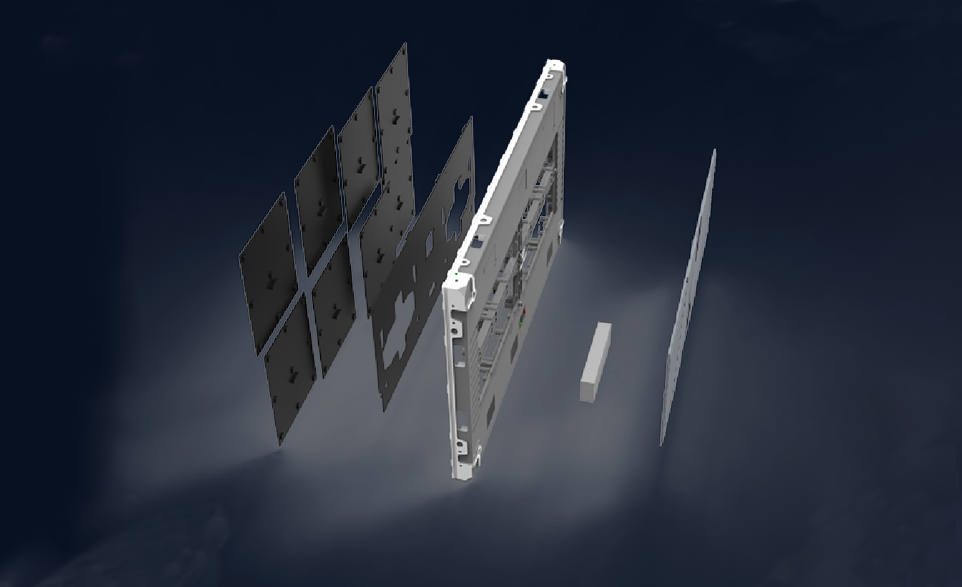

2.FRONT AND REAR MAINTENANCE DESIGN
3.HIGH PRECISION
4.FULL FLIP-CHIP COB PROCESS
5.ADOPTS 3D INK PRINTING TECHNOLOGY
6.ULTRA-LOW POWER CONSUMPTION
Model | P0.7 | P0.9 | P1.25 | P1.56 |
Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
LED Type | Flip-COB | Flip-COB | Flip-COB | Flip-COB |
Cabinet Dimension(mm) | 600*337.5*29.5 | 600*337.5*29.5 | 600*337.5*29.5 | 600*337.5*29.5 |
Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
Module Size(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
Cabinet Weight | 4kg | 4kg | 4kg | 4kg |
Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Driving Type | 1/36 | 1/36 or 1/54 | 1/27 or 1/60 | 1/48 |
Maintenance | Front service | Front service | Front service | Front service |
Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 |
Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
Installation Type | Mounting/Hanging/Stacking | Mounting/Hanging/Stacking | Mounting/Hanging/Stacking | Mounting/Hanging/Stacking |
Gray Scale | 16bit | 16bit | 16bit | 16bit |
Viewing Angle | H:170°V:170° | H:170°V:170° | H:170°V:170° | H:170°V:170° |
Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
