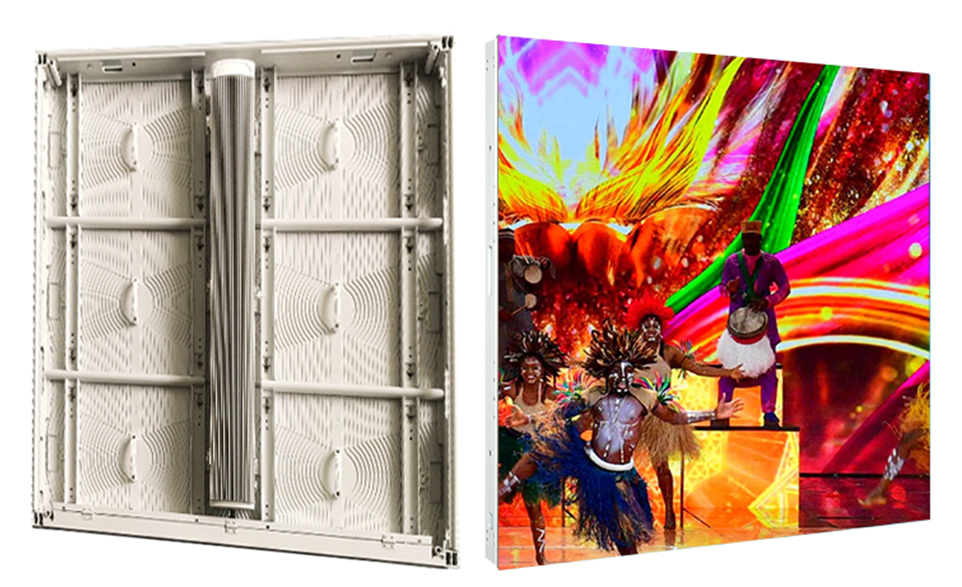

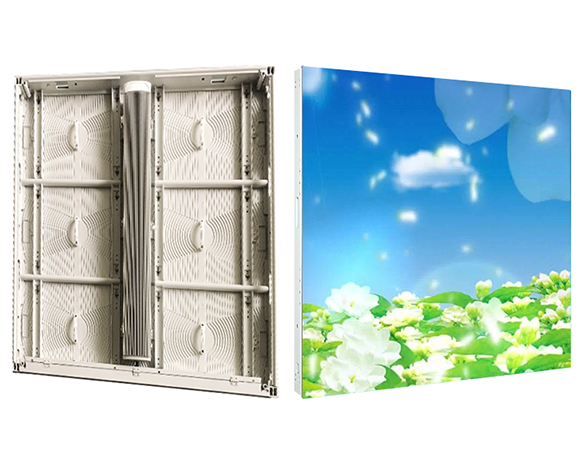

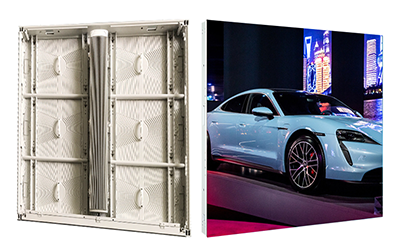

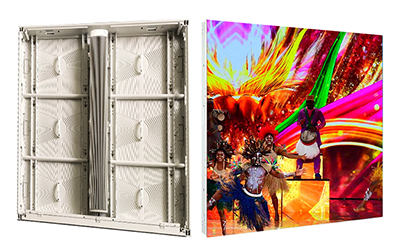

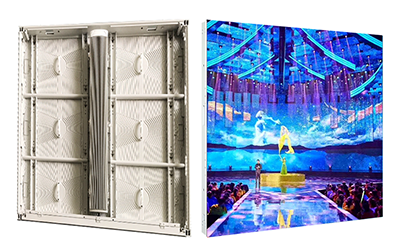

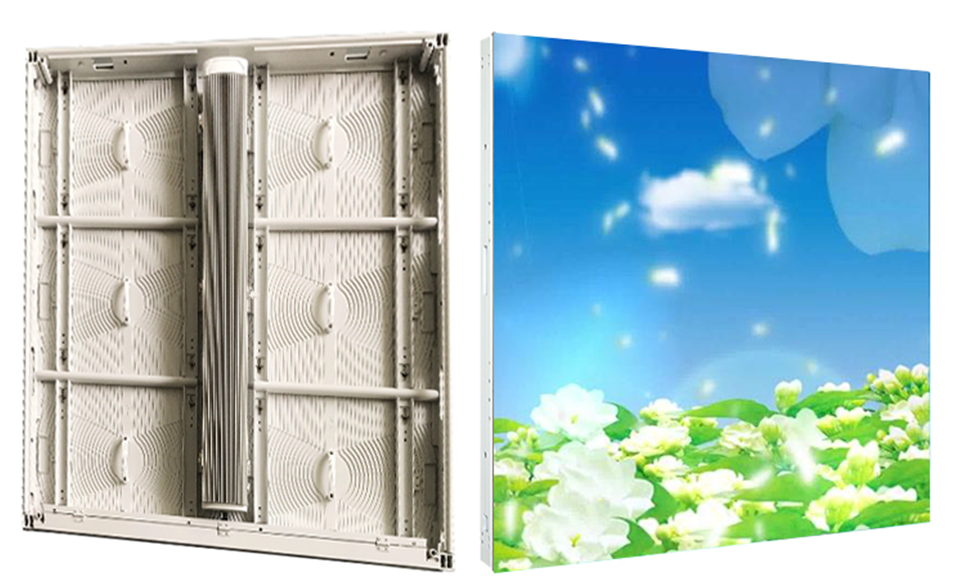

W6 Series

Partial voltage power supply design, low heat, long life span;

Hard connection design, high stability;

High stability: All-aluminum material, dense corrugated heat sink design, high heat dissipation efficiency;

Partial voltage power supply design, low heat, long life span;

: Module P3.91

High brightness; brightness up to 10000CD/㎡; front maintenance; titanium alloy, ultra-light and ultra-thin; quick lock, quick installation.

: Quick installation

: High protection level, safe and reliable

IP65/IP54 protection level, fully waterproof design, suitable for any bad weather. Install leakage protector, multiple protection, protection is everywhere.

: High refresh rate

The high refresh rate of ≥3840Hz ensures that the picture display is stable without smudges, flickering, and frame loss. The signal delay ensures the consistency of picture playback.

: High waterproof grade

High waterproof grade, IP65 for the whole cabinet;

: The mask has high accuracy, low tolerance;

The mask has high accuracy, low tolerance;

Product parameters

Item	P5.7	P6.67	P8	P10
Pixel Pitch、Resolution rate、size	5.7mm、8456、480320mm	6.67mm、7248、480320mm	8mm、6040、480320mm	10mm、4832、480320mm
Pixel color、Pixel LED	1R1G1B、 SMD2727	1R1G1B、 SMD2727	1R1G1B、 SMD2727	1R1G1B、 SMD2727
Working voltage、Module Power	3.2/4.2V、≤95W	3.2/4.2V、≤75W	3.2/4.2V、≤95W	3.2/4.2V、≤95W
Driving IC、Driving way	ICN2163、1/7	ICND2055、1/6	ICN2163、1/4	ICN2163、1/2
HUB	HUB320	HUB6.67	HUB320	HUB320
Material、Cabinet Weight(kg/Cabinet)	Die-cast Aluminum、28kg /Cabinet	Die-cast Aluminum、32kg /Cabinet	Die-cast Aluminum、28kg /Cabinet	Die-cast Aluminum、28kg /Cabinet
Resolution rate、size、Module quantity	168168Dots、96096077mm、23	144144Dots、96096077mm、23	120120Dots、96096077mm、23	9696Dots、96096077mm、23
Density	30625Dots/㎡	22500Dots/㎡	15625Dots/㎡	10000Dots/㎡
Whitebalance、Color temperature	>10000 CD/㎡、6000K-8000K	>10000CD/㎡、6000K-8000K	>10000 CD/㎡、6000K-8000K	>10000 CD/㎡、6000K-8000K
view angel、Non-Flatness、Module interval	H/V：140°/140°、＜0.2mm、＜0.2mm	H/V：140°/140°、＜0.2mm、＜0.2mm	H/V：140°/140°、＜0.2mm、＜0.2mm	H/V：140°/140°、＜0.2mm、＜0.2mm
Maximal power/㎡、Average power/㎡	≤650W/㎡、≤200W/㎡	≤540W/㎡、≤180W/㎡	≤650W/㎡、≤200W/㎡	≤650W/㎡、≤200W/㎡
Frame frequency、Refresh frequency、Gray grade	60Hz、≥3840Hz、14bit	60Hz、≥3840Hz、14bit	60Hz、≥3840Hz、14bit	60Hz、≥3840Hz、14bit
Control system、System supports	Windows XP，WIN 7	Windows XP，WIN 7	Windows XP，WIN 7	Windows XP，WIN 7
Working temperature、Protection grade	﹣20~50℃、Front/Back：IP65	﹣20~50℃、Front/Back：IP65	﹣20~50℃、Front/Back：IP65	﹣20~50℃、Front/Back：IP65
*Reference information, different configurations, different parameters
